ADXL323KCPZ - Analog Devices

Description: ADXL323KCPZ, Accelerometer 2-Axis, 1600 Hz 1.8 → 5.25 V, 16-Pin LFCSP EP

Download ADXL323KCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

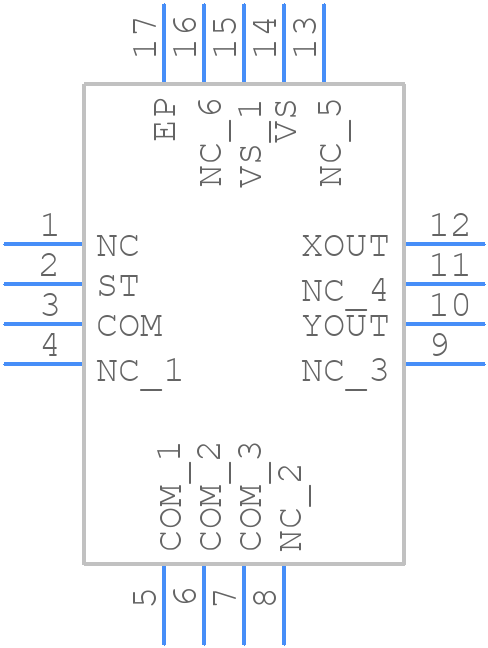

Symbol
ADXL323KCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL323KCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-5A (LFCSP)
click to zoom
3D Models
ADXL323KCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-5A (LFCSP)
click to zoom

ADXL323KCPZ Details

  • Manufacturer Part Number:

    ADXL323KCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    BCC

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-5A

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Body Breadth:

    4 mm

  • Body Height:

    1.43 mm

  • Body Length or Diameter:

    4 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ADXL323KCPZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADXL323KCPZ involves placing the accelerometer at the center of the PCB, with the sensitive axis (X, Y, or Z) aligned with the PCB's axis. The device should be placed away from high-frequency components, and the PCB should have a solid ground plane to reduce noise and interference.
  • The ADXL323KCPZ does not require calibration in the classical sense. However, it's recommended to perform a zero-g offset calibration to account for any internal sensor offsets. This can be done by taking readings with the device at rest and averaging the values to determine the offset. The offset can then be subtracted from subsequent readings to improve accuracy.
  • The ADXL323KCPZ can measure accelerations up to ±16g. However, it's recommended to operate the device within the specified range of ±13g to ensure optimal performance and accuracy.
  • The ADXL323KCPZ is rated for operation up to 125°C. However, the device's accuracy and sensitivity may degrade at high temperatures. It's recommended to consult the datasheet and perform thorough testing to ensure the device meets the requirements of the specific application.
  • The ADXL323KCPZ has a built-in 50 Hz low-pass filter to reduce noise and vibrations. Additionally, external filtering techniques such as software-based filtering or the use of analog filters can be employed to further reduce noise and improve signal quality.
