ADXL325BCPZ-RL - Analog Devices

Description: Accelerometers 3 AXIS 5 G LOW COST ACCEL TAPE & REEL

Download ADXL325BCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

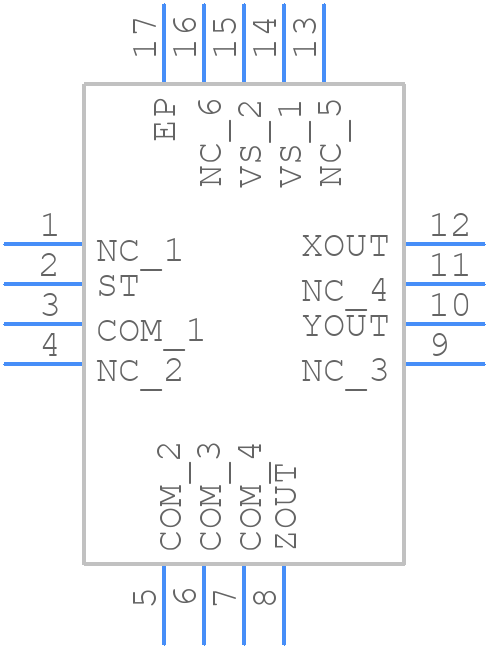

ADXL325BCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL325BCPZ-RL - Analog Devices PCB footprint - Other - Other - ADXL325BCPZ-RL-4
click to zoom
3D Models
ADXL325BCPZ-RL - Analog Devices - 3D model - Other - ADXL325BCPZ-RL-4
click to zoom

ADXL325BCPZ-RL Details

  • Manufacturer Part Number:

    ADXL325BCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, 1.45 MM HEIGHT, ROHS COMPLIANT, PLASTIC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-5A

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADXL325BCPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL325BCPZ-RL involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • Calibration of the ADXL325BCPZ-RL involves applying known accelerations to the device and measuring the output. A calibration procedure can be implemented using a shaker table or a centrifuge to apply controlled accelerations. The device can also be calibrated using a 6-point tumble test.
  • The ADXL325BCPZ-RL can measure accelerations up to ±5g. However, the device can survive accelerations up to ±10g without damage. It's recommended to use a mechanical filter or a low-pass filter to prevent aliasing and ensure accurate measurements.
  • The ADXL325BCPZ-RL can be interfaced with a microcontroller using an analog-to-digital converter (ADC). The accelerometer's output is a differential analog signal, which can be converted to a digital signal using an ADC. The microcontroller can then read the digital signal and process the acceleration data.
  • The ADXL325BCPZ-RL has a typical current consumption of 0.15 mA at 3.3V supply voltage. The power consumption can be reduced by using the device's low-power mode, which reduces the current consumption to 0.05 mA.
