ADXL326BCPZ-RL7 - Analog Devices

Description: Accelerometers Small 3-Axis +/-16 g Low Power

Download ADXL326BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

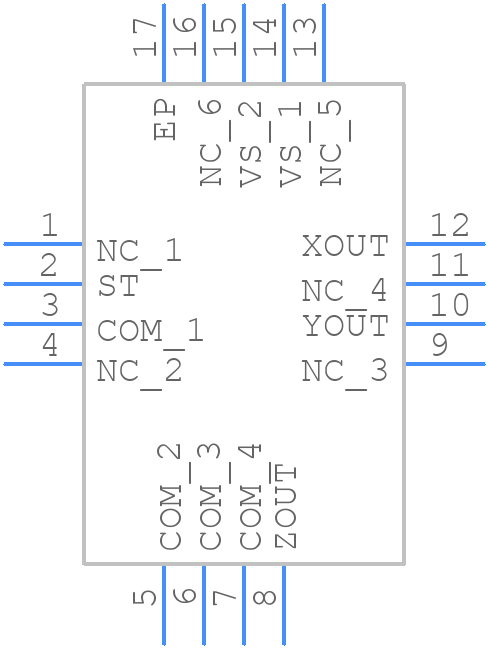

ADXL326BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL326BCPZ-RL7 - Analog Devices PCB footprint - Other - Other - ADXL326BCPZ-RL7-2
click to zoom
3D Models
ADXL326BCPZ-RL7 - Analog Devices - 3D model - Other - ADXL326BCPZ-RL7-2
click to zoom

ADXL326BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADXL326BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-5A

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Body Height:

    1.43 mm

  • Body Length or Diameter:

    4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

ADXL326BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL326BCPZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADXL326BCPZ-RL7 does not require calibration. It is a self-contained accelerometer that provides a calibrated output. However, if you need to adjust the sensitivity or offset, you can use the built-in self-test feature or apply an external calibration signal.
  • The ADXL326BCPZ-RL7 has a maximum acceleration range of ±16g. However, it can measure accelerations up to ±18g, but with reduced accuracy.
  • The ADXL326BCPZ-RL7 is rated for operation from -40°C to +125°C. However, the accuracy and sensitivity of the accelerometer may degrade at high temperatures. It's recommended to consult the datasheet and application notes for more information on high-temperature operation.
  • The ADXL326BCPZ-RL7 has an analog output that can be connected to an analog-to-digital converter (ADC) on a microcontroller. The output voltage range is 0.5V to 4.5V, and the output impedance is 32 kΩ. You can use a voltage divider or an op-amp to condition the signal if necessary.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL326BCPZ-RL7 Overview

Use the download button to access the ADXL326BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Sensors/Transducers
