Part Image

ADXL327BCPZ-RL7 - Analog Devices

Description: Accelerometer Triple ±2g 2.5V/3.3V 378mV/g to 462mV/g 16-Pin LFCSP EP T/R

Download ADXL327BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

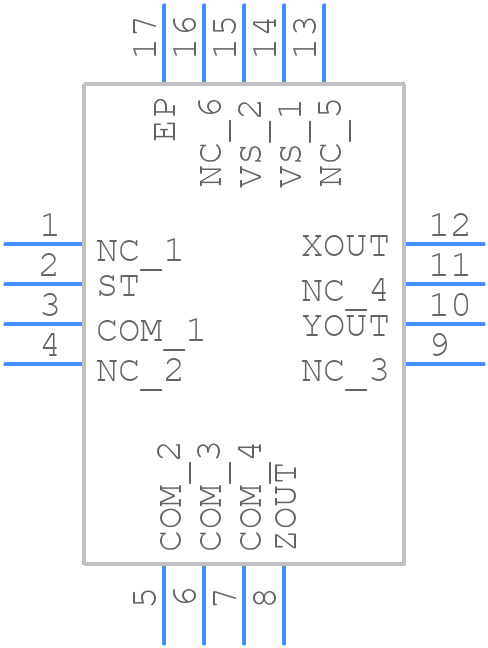

ADXL327BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL327BCPZ-RL7 - Analog Devices PCB footprint - Other - Other - ADXL327BCPZ-RL7-1
click to zoom
3D Models
ADXL327BCPZ-RL7 - Analog Devices - 3D model - Other - ADXL327BCPZ-RL7-1
click to zoom

ADXL327BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADXL327BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HQCCN, LCC16,.16SQ,25

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-5A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

ADXL327BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL327BCPZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • Calibration of the ADXL327BCPZ-RL7 involves applying known accelerations to the device and measuring the corresponding output voltages. A calibration procedure typically involves rotating the device through a series of known angles and recording the output voltages. The resulting data can be used to create a calibration matrix that compensates for any offset and sensitivity errors.
  • The ADXL327BCPZ-RL7 can measure accelerations up to ±16g, but it's recommended to limit the acceleration range to ±10g to ensure accurate measurements and prevent damage to the device.
  • Noise and vibrations can be filtered out using digital filters such as low-pass filters or band-pass filters. Analog filters can also be used, but digital filters are more flexible and easier to implement. The choice of filter depends on the specific application and the frequency range of interest.
  • The ADXL327BCPZ-RL7 is rated for operation up to 125°C, but its accuracy and reliability may degrade at high temperatures. It's recommended to use the device within its specified operating temperature range (−40°C to 85°C) for optimal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL327BCPZ-RL7 Overview

Use the download button to access the ADXL327BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
