- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADXL335BCPZ-RL7
- Part Number ADXL335BCPZ-RL7
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 16-Lead LFCSP_L-1
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADXL335BCPZ-RL7 Details
-
Manufacturer Part Number:
ADXL335BCPZ-RL7
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Package Description:
4 X 4 MM, 1.45 MM HEIGHT, ROHS COMPLIANT, PLASTIC, MO-220WGGD, LFCSP-16
-
Pin Count:
16
-
Manufacturer Package Code:
CP-16-14
-
Country Of Origin:
South Korea
-
ECCN Code:
EAR99
-
HTS Code:
9031.80.80.85
ADXL335BCPZ-RL7 Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADXL335BCPZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
Calibration of the ADXL335BCPZ-RL7 involves applying a known acceleration to the device and measuring the output voltage. The sensitivity and offset of the device can be calculated from these measurements. The device can be calibrated in the factory or in the application.
-
The ADXL335BCPZ-RL7's sensitivity and offset vary with temperature. The device's sensitivity decreases by about 0.2% per degree Celsius, and the offset voltage changes by about 0.2 mV per degree Celsius. These variations can be compensated for in the application.
-
Yes, the ADXL335BCPZ-RL7 is designed to operate in high-vibration environments. However, the device's performance may be affected by extreme vibrations. It is recommended to use a low-pass filter to remove high-frequency noise and to ensure that the device is properly mounted to the PCB.
-
The ADXL335BCPZ-RL7's analog output can be interfaced with a microcontroller's analog-to-digital converter (ADC). The ADC should be configured to sample the output voltage at a rate that is at least twice the bandwidth of the accelerometer's output signal.
Trust Checks
Community Provided
System Verified
Community Approved
ADXL335BCPZ-RL7 Overview

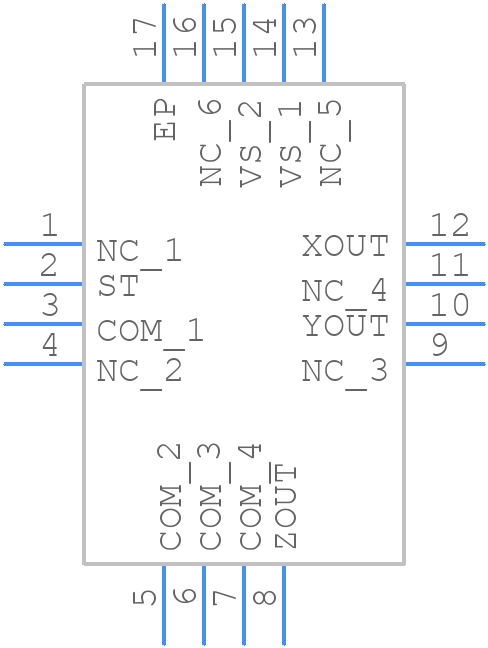

Use the download button to access the ADXL335BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3,
or try a keyword search, such as Other Signal Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
