ADXL337BCPZ-RL - Analog Devices

Description: Accelerometers Small 3-Axis +/-3 g Low Power

Download ADXL337BCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

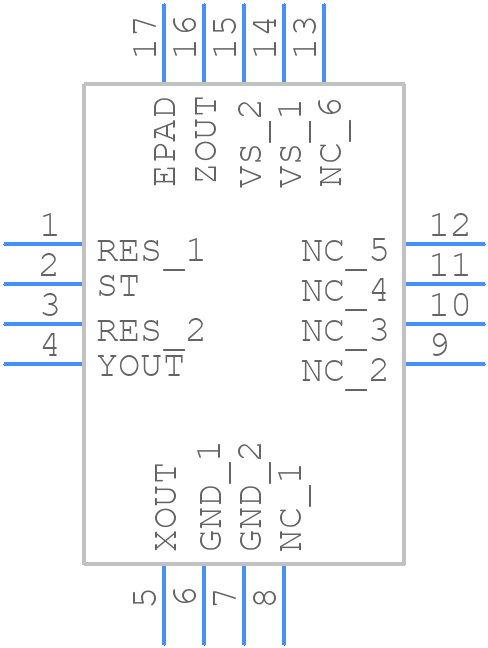

Symbol
ADXL337BCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL337BCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead LFCSP_LQ
click to zoom
3D Models
ADXL337BCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead LFCSP_LQ
click to zoom

ADXL337BCPZ-RL Details

  • Manufacturer Part Number:

    ADXL337BCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-28

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Body Breadth:

    3 mm

  • Body Height:

    1.43 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

ADXL337BCPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL337BCPZ-RL involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the signal traces to reduce noise and interference.
  • Calibration of the ADXL337BCPZ-RL involves applying known accelerations to the device and measuring the output voltages. The sensitivity and offset of the device can then be calculated and used to correct the output readings.
  • The ADXL337BCPZ-RL can measure accelerations up to ±3.6g, but it's recommended to operate within the ±3g range for optimal performance.
  • The ADXL337BCPZ-RL is rated for operation from -40°C to 125°C, but its accuracy and sensitivity may degrade at higher temperatures. It's recommended to consult the datasheet and application notes for more information on high-temperature operation.
  • Noise and vibrations can be filtered out using digital filters, such as low-pass filters or band-pass filters, or analog filters, such as RC filters or active filters. The choice of filter depends on the specific application and noise characteristics.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL337BCPZ-RL Overview

Use the download button to access the ADXL337BCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Sensors/Transducers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
