ADXL343BCCZ - Analog Devices

Description: ADXL343BCCZ Analog Devices, 3-Axis Accelerometer, Serial-3 Wire, Serial-4 Wire, Serial-I2C, Serial-SPI, 14-Pin LGA

Download ADXL343BCCZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

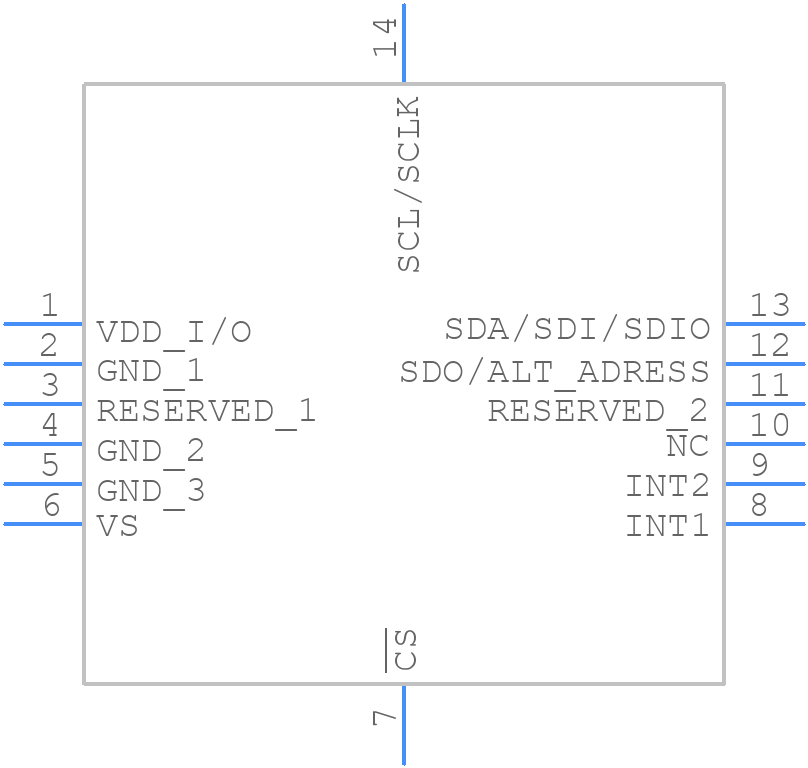

ADXL343BCCZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL343BCCZ - Analog Devices PCB footprint - Other - Other - CC-14-1
click to zoom
3D Models
ADXL343BCCZ - Analog Devices - 3D model - Other - CC-14-1
click to zoom

ADXL343BCCZ Details

  • Manufacturer Part Number:

    ADXL343BCCZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA

  • Package Description:

    3 X 5 MM, 1 MM HEIGHT, ROHS COMPLIANT, PLASTIC, LGA-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    CC-14-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFLGA

  • Package Equivalence Code:

    LCC14,.12X.2,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

ADXL343BCCZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL343BCCZ involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADXL343BCCZ does not require calibration in the classical sense. However, you may need to perform a zero-g offset calibration to account for any offset in the sensor's output. This can be done by taking the average of the sensor's output when it is at rest, and then subtracting this value from subsequent readings.
  • The ADXL343BCCZ can measure accelerations up to ±16g. However, the maximum acceleration range that can be measured accurately depends on the output data rate and the bandwidth of the sensor. For example, at a 100 Hz output data rate, the maximum acceleration range is ±10g.
  • The ADXL343BCCZ is rated for operation from -40°C to 85°C. However, the sensor's accuracy and sensitivity may degrade at high temperatures. If you need to use the sensor in a high-temperature environment, you should consult the datasheet and application notes for guidance on temperature compensation and calibration.
  • The ADXL343BCCZ has a digital output that can be interfaced with a microcontroller using a SPI or I2C interface. You will need to connect the sensor's SCL and SDA pins to the microcontroller's I2C pins, or the sensor's SCLK and SDI pins to the microcontroller's SPI pins. You will also need to configure the microcontroller's communication protocol to match the sensor's protocol.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL343BCCZ Overview

Use the download button to access the ADXL343BCCZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Signal Circuits
