ADXL345BCCZ-RL - Analog Devices

Description: Accelerometers Digital Output Three-Axis Accel 4K RL

Download ADXL345BCCZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

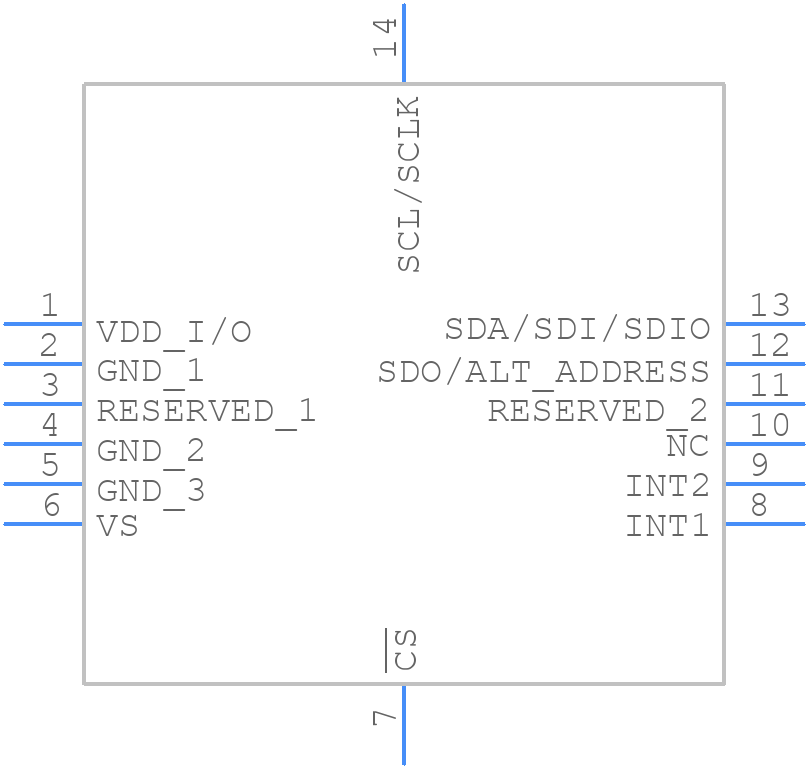

ADXL345BCCZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL345BCCZ-RL - Analog Devices PCB footprint - Other - Other - ADXL345BCCZ-RL-1
click to zoom
3D Models
ADXL345BCCZ-RL - Analog Devices - 3D model - Other - ADXL345BCCZ-RL-1
click to zoom

ADXL345BCCZ-RL Details

  • Manufacturer Part Number:

    ADXL345BCCZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA

  • Package Description:

    LGA-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    CC-14-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Body Breadth:

    3 mm

  • Body Height:

    0.74 mm

  • Body Length or Diameter:

    5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.36-1.44V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    LCC14,.12X.2,32

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

ADXL345BCCZ-RL Frequently Asked Questions (FAQs)

  • The ADXL345 can measure accelerations up to ±16g, but it can be set to measure ±2g, ±4g, or ±8g ranges as well.
  • The ADXL345 measures acceleration in three axes (x, y, z) simultaneously. You can configure the device to output data in 10-bit, 12-bit, or 13-bit formats using the DATA_FORMAT register.
  • The ADXL345 has a typical current consumption of 130 μA in normal operation, and 0.1 μA in standby mode. It operates from a 2.0 V to 3.6 V supply voltage.
  • The ADXL345 has a SPI (Serial Peripheral Interface) and I²C (Inter-Integrated Circuit) interface. You can connect it to a microcontroller using either interface, and communicate with it using the corresponding protocol.
  • The ADXL345 has a typical noise floor of 250 μg/√Hz in the 10 Hz to 250 Hz frequency range, and 150 μg/√Hz in the 250 Hz to 2 kHz frequency range.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL345BCCZ-RL Overview

Use the download button to access the ADXL345BCCZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Sensors/Transducers
