ADXL356BEZ-RL7 - Analog Devices

Description: Accelerometers Tri-Axis Analog Accel +/-10g/+/-20g

Download ADXL356BEZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

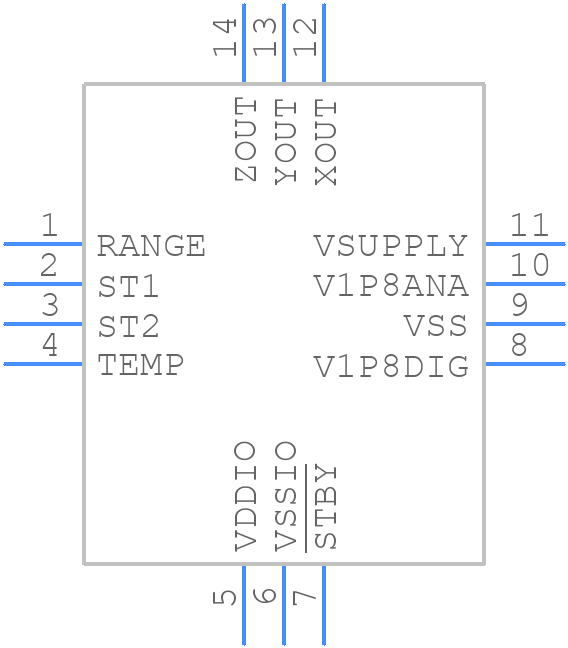

ADXL356BEZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL356BEZ-RL7 - Analog Devices PCB footprint - Other - Other - E-14-1
click to zoom
3D Models
ADXL356BEZ-RL7 - Analog Devices - 3D model - Other - E-14-1
click to zoom

ADXL356BEZ-RL7 Details

  • Manufacturer Part Number:

    ADXL356BEZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    E-14-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Date Of Intro:

    2017-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Body Height:

    2.05 mm

  • Body Length or Diameter:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG OUTPUT

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC14,.2SQ

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Technology:

    MEMS

  • Terminal Finish:

    Gold/Nickel (Au/Ni)

ADXL356BEZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL356BEZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the signal traces to reduce noise and interference.
  • Calibration of the ADXL356BEZ-RL7 involves applying known accelerations to the device and measuring the output. The device can be calibrated using a shaker table or a centrifuge, and the calibration process typically involves applying a series of known accelerations and measuring the output voltage.
  • The ADXL356BEZ-RL7 can measure accelerations up to ±350 g, but it's recommended to operate within the specified range of ±250 g to ensure accurate measurements.
  • The ADXL356BEZ-RL7 is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. Consult the datasheet for temperature-related specifications and derating curves.
  • Noise and vibrations can be filtered out using digital filters, such as low-pass filters or band-pass filters, in the signal processing chain. Additionally, mechanical filtering using vibration mounts or dampers can also be effective.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL356BEZ-RL7 Overview

Use the download button to access the ADXL356BEZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Sensors/Transducers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
