ADXL356BEZ footprint, schematic symbol and 3D model by Analog Devices

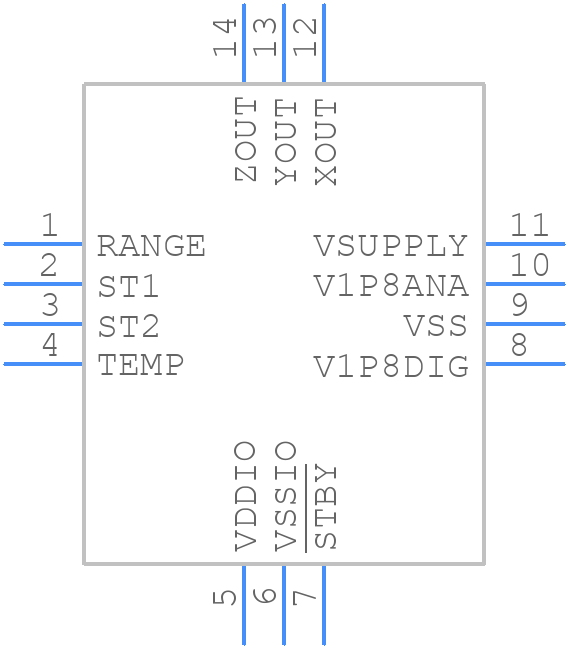

Symbol

click to zoom

PCB Footprints

ADXL356BEZ - Analog Devices PCB footprint - Other - Other - E-14-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADXL356BEZ
Part Number ADXL356BEZ
Manufacturer Analog Devices
Pin Count 14
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - E-14-1
Released Date Jan 19, 2021
Last Modified Date Oct 1, 2025 11:37 AM UTC
Pinout / Pin List Click Here (Member Only)

ADXL356BEZ Details

Manufacturer Part Number:
ADXL356BEZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LCC-14
Pin Count:
14
Manufacturer Package Code:
E-14-1
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
9031.80.80.85
Date Of Intro:
2017-02-23
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Body Height:
2.05 mm
Body Length or Diameter:
6 mm
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output:
ANALOG
Output Type:
ANALOG OUTPUT
Package Body Material:
CERAMIC
Package Equivalence Code:
LCC14,.2SQ
Package Shape/Style:
SQUARE
Sensors/Transducers Type:
ACCELEROMETER
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.25 V
Surface Mount:
YES
Technology:
MEMS
Terminal Finish:
Gold/Nickel (Au/Ni)

ADXL356BEZ Frequently Asked Questions (FAQs)

A good PCB layout for the ADXL356BEZ involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins. A 4-layer PCB with a dedicated analog ground plane is recommended.
The ADXL356BEZ does not require calibration in the classical sense. However, it's recommended to perform a zero-g offset calibration to account for any offset errors. This can be done by taking the average of the output values when the accelerometer is at rest.
The ADXL356BEZ can measure accelerations up to ±40g, but it's recommended to limit the acceleration to ±20g to ensure accurate measurements.
The ADXL356BEZ is rated for operation up to 125°C, but its accuracy and sensitivity may degrade at high temperatures. It's recommended to use the accelerometer in applications with temperatures below 85°C for optimal performance.
The ADXL356BEZ has a built-in 50 Hz low-pass filter, but additional filtering may be necessary depending on the application. A digital filter or a low-pass filter with a cutoff frequency of 10 Hz to 20 Hz can be used to filter out noise and vibrations.

Trust Checks

Expert Contribution

System Verified

Community Approved

ADXL356BEZ Overview

Use the download button to access the ADXL356BEZ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Sensors/Transducers
