ADXL356TEZ-EP-RL7 - Analog Devices

Description: Accelerometers EP Tri-Axis Analog Accel 10g/40g

Download ADXL356TEZ-EP-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

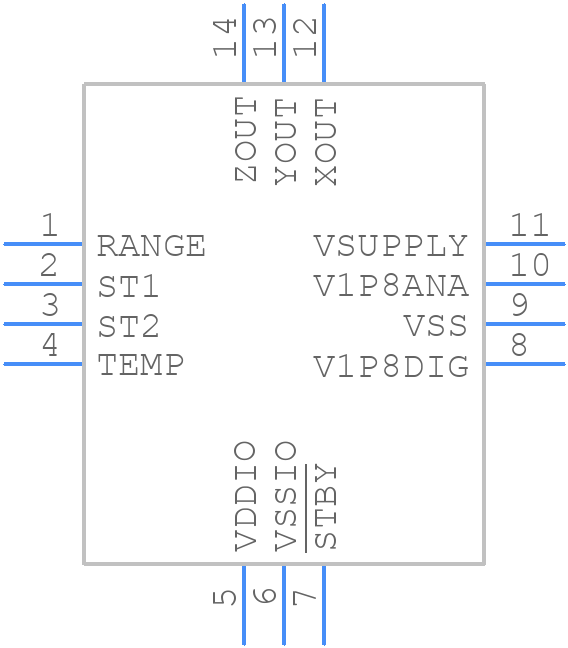

ADXL356TEZ-EP-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL356TEZ-EP-RL7 - Analog Devices PCB footprint - Other - Other - E-14-1
click to zoom
3D Models
ADXL356TEZ-EP-RL7 - Analog Devices - 3D model - Other - E-14-1
click to zoom

ADXL356TEZ-EP-RL7 Details

  • Manufacturer Part Number:

    ADXL356TEZ-EP-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    E-14-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e4

  • Terminal Finish:

    Gold/Nickel (Au/Ni)

ADXL356TEZ-EP-RL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the ADXL356 datasheet, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The ADXL356TEZ-EP-RL7 does not require calibration, as it is a factory-calibrated device. However, users can perform a zero-g offset calibration by applying a known acceleration (e.g., 0 g) and adjusting the output to match the expected value.
  • The ADXL356TEZ-EP-RL7 can measure accelerations up to ±40 g, but it is recommended to operate within the specified range of ±20 g for optimal performance and accuracy.
  • The ADXL356TEZ-EP-RL7 is rated for operation from -40°C to +125°C, but its accuracy and performance may degrade at high temperatures. Users should consult the datasheet and perform thorough testing to ensure the device meets their specific requirements.
  • The ADXL356TEZ-EP-RL7 has a digital SPI interface, which can be connected to a microcontroller using a standard SPI protocol. Users should consult the datasheet for specific pinout and interface details.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL356TEZ-EP-RL7 Overview

Use the download button to access the ADXL356TEZ-EP-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Sensors/Transducers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
