ADXL356TEZ-EP - Analog Devices

Description: Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometer

Download ADXL356TEZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

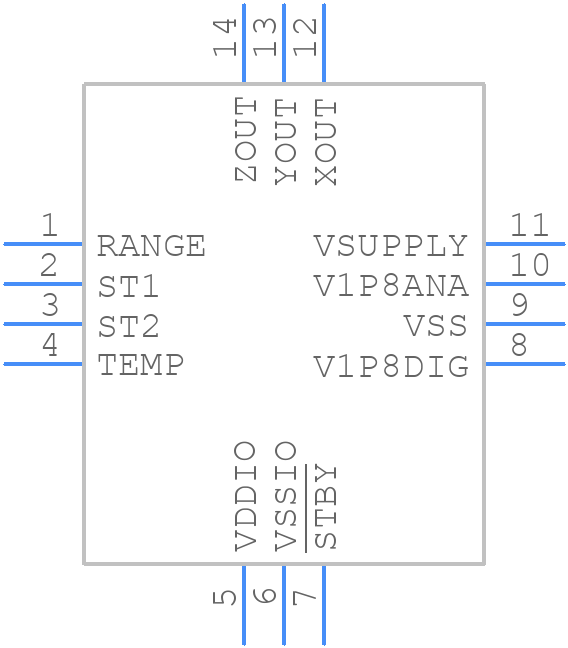

Symbol
ADXL356TEZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL356TEZ-EP - Analog Devices PCB footprint - Other - Other - E-14-1
click to zoom
3D Models
ADXL356TEZ-EP - Analog Devices - 3D model - Other - E-14-1
click to zoom

ADXL356TEZ-EP Details

  • Manufacturer Part Number:

    ADXL356TEZ-EP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    E-14-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e4

  • Terminal Finish:

    Gold/Nickel (Au/Ni)

ADXL356TEZ-EP Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for the ADXL356TEZ-EP can be found in the ADXL356TEZ-EP evaluation board design files, which are available on the Analog Devices website. It's essential to follow the recommended layout to ensure optimal performance and minimize noise.
  • The ADXL356TEZ-EP does not require calibration in the classical sense. However, it's recommended to perform a zero-g offset calibration to account for any offset errors. This can be done by taking measurements with the device at rest and averaging the output to determine the zero-g offset.
  • The ADXL356TEZ-EP can measure accelerations up to ±350 g, but it's recommended to limit the acceleration range to ±250 g to ensure optimal performance and accuracy.
  • The ADXL356TEZ-EP has a built-in 2-pole low-pass filter, but additional filtering may be necessary depending on the application. A combination of digital and analog filtering techniques can be used to filter out noise and vibrations. It's also essential to ensure proper PCB layout and grounding to minimize noise.
  • The ADXL356TEZ-EP is rated for operation up to 125°C, but it's essential to consider the temperature coefficient of the device and the potential for drift and offset errors at high temperatures. It's recommended to consult the datasheet and application notes for more information on high-temperature operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL356TEZ-EP Overview

Use the download button to access the ADXL356TEZ-EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Sensors/Transducers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
