ADXL357BEZ-RL - Analog Devices

Description: Accelerometer Triple ±10.24g/±20.48g/±40.96g 2.5V 73.6mV/g to 86.4mV/g/36.8mV/g to 43.2mV/g/18.4mV/g to 21.6mV/g 14-Pin CLLCC T/R

Download ADXL357BEZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

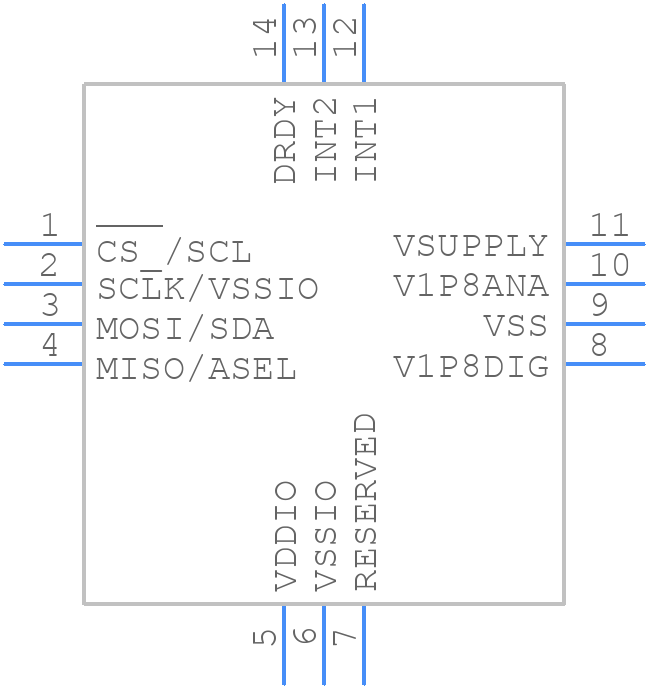

ADXL357BEZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL357BEZ-RL - Analog Devices PCB footprint - Other - Other - E-14-1
click to zoom
3D Models
ADXL357BEZ-RL - Analog Devices - 3D model - Other - E-14-1
click to zoom

ADXL357BEZ-RL Details

  • Manufacturer Part Number:

    ADXL357BEZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    E-14-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Date Of Intro:

    2017-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ALSO HAS VOLTAGE OUTPUT 0.50-2.0V

  • Body Height:

    2.05 mm

  • Body Length or Diameter:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    -10-4mA

  • Output Type:

    DIGITAL CURRENT/DIGITAL VOLTAGE

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC14,.2SQ

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Technology:

    MEMS

  • Terminal Finish:

    Gold/Nickel (Au/Ni)

ADXL357BEZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL357BEZ-RL involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the accelerometer and the analog-to-digital converter (ADC). A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration of the ADXL357BEZ-RL involves applying known accelerations to the device and measuring the corresponding output voltages. A calibration procedure can be implemented using a shaker table or a centrifuge to apply controlled accelerations. The device can also be calibrated using a 6-point calibration method.
  • The ADXL357BEZ-RL's sensitivity and offset can vary with temperature. The device's sensitivity decreases by about 0.05% per degree Celsius, and the offset can shift by up to 1.5 mg/°C. Temperature compensation can be implemented using an external temperature sensor and calibration data.
  • Noise and vibrations can be filtered out using digital filters such as a low-pass filter or a band-pass filter. Analog filters can also be used, such as a RC filter or an active filter. The choice of filter depends on the specific application and the frequency range of interest.
  • The ADXL357BEZ-RL can measure accelerations up to ±350 g, but the maximum acceleration range depends on the specific application and the desired measurement range. The device can be configured to measure accelerations in the range of ±2 g to ±350 g.
