ADXL357BEZ-RL7 - Analog Devices

Description: Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometers with Digital Output -40°C to +125°C 14-Lead LCC (6mm x 6mm) E-14-1 ±10, ±20, ±40 Specified Voltage 3.3(V)

Download ADXL357BEZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

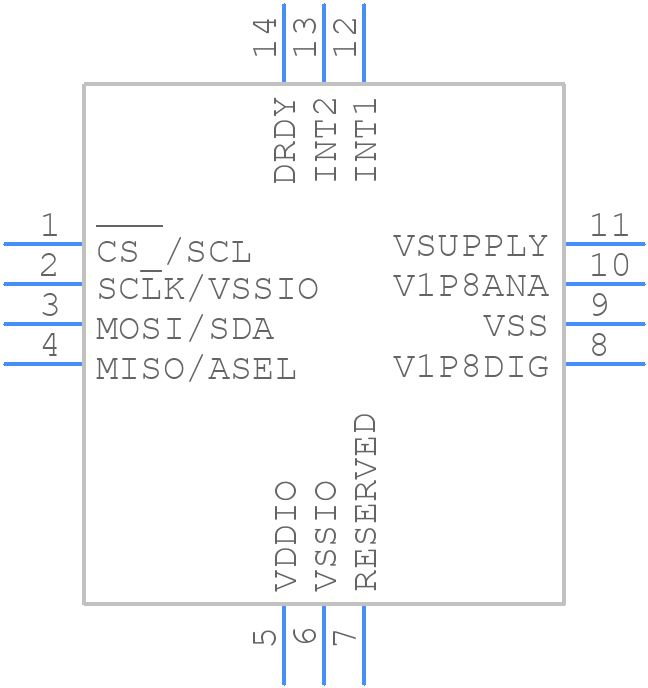

ADXL357BEZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL357BEZ-RL7 - Analog Devices PCB footprint - Other - Other - ADXL357BEZ-RL7-2
click to zoom
3D Models
ADXL357BEZ-RL7 - Analog Devices - 3D model - Other - ADXL357BEZ-RL7-2
click to zoom

ADXL357BEZ-RL7 Details

  • Manufacturer Part Number:

    ADXL357BEZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    E-14-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Date Of Intro:

    2017-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ALSO HAS VOLTAGE OUTPUT 0.50-2.0V

  • Body Height:

    2.05 mm

  • Body Length or Diameter:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    -10-4mA

  • Output Type:

    DIGITAL CURRENT/DIGITAL VOLTAGE

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC14,.2SQ

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Technology:

    MEMS

  • Terminal Finish:

    Gold/Nickel (Au/Ni)

ADXL357BEZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL357BEZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the accelerometer and the analog-to-digital converter (ADC).
  • Calibration of the ADXL357BEZ-RL7 involves applying known accelerations to the device and measuring the output. The device can be calibrated using a 6-point or 12-point calibration method, depending on the desired level of accuracy.
  • The ADXL357BEZ-RL7's sensitivity and offset can vary with temperature. The device is specified to operate over a temperature range of -40°C to 125°C, and the user should consider temperature compensation or calibration to achieve optimal performance.
  • Yes, the ADXL357BEZ-RL7 is designed to operate in high-vibration environments. However, the user should ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • The ADXL357BEZ-RL7's output can be filtered using digital or analog filters to remove noise and vibrations. A low-pass filter with a cutoff frequency of around 10 Hz to 50 Hz can be used to remove high-frequency noise.
