ADXL357BEZ - Analog Devices

Description: Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometers with Digital Output -40°C to +125°C 14-Lead LCC (6mm x 6mm) E-14-1 ±10, ±20, ±40 Specified Voltage 3.3(V)

Download ADXL357BEZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

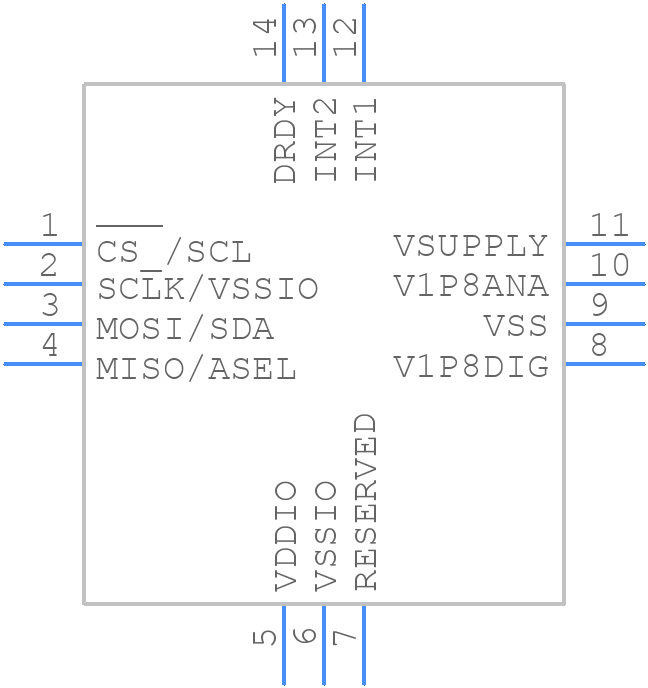

ADXL357BEZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL357BEZ - Analog Devices PCB footprint - Other - Other - ADXL357BEZ-1
click to zoom
3D Models
ADXL357BEZ - Analog Devices - 3D model - Other - ADXL357BEZ-1
click to zoom

ADXL357BEZ Details

  • Manufacturer Part Number:

    ADXL357BEZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    E-14-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Date Of Intro:

    2017-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ALSO HAS VOLTAGE OUTPUT 0.50-2.0V

  • Body Height:

    2.05 mm

  • Body Length or Diameter:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    -10-4mA

  • Output Type:

    DIGITAL CURRENT/DIGITAL VOLTAGE

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC14,.2SQ

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Technology:

    MEMS

  • Terminal Finish:

    Gold/Nickel (Au/Ni)
