ADXL362BCCZ-MI-RL7 - Analog Devices

Description: Accelerometer X, Y, Z Axis ±2g, 4g, 8g 6.25Hz ~ 400Hz 16-LGA (3x3.25)

Download ADXL362BCCZ-MI-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

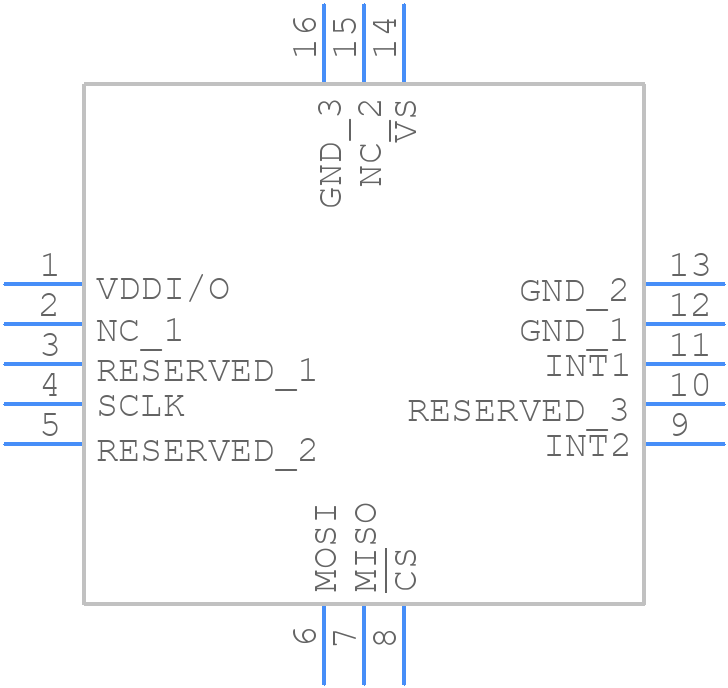

ADXL362BCCZ-MI-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL362BCCZ-MI-RL7 - Analog Devices PCB footprint - Other - Other - ADXL362BCCZ-MI-RL7-5
click to zoom
3D Models
ADXL362BCCZ-MI-RL7 - Analog Devices - 3D model - Other - ADXL362BCCZ-MI-RL7-5
click to zoom

ADXL362BCCZ-MI-RL7 Details

  • Manufacturer Part Number:

    ADXL362BCCZ-MI-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CC-16-4

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XBGA-N16

  • Length:

    3.25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TFLGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.14 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADXL362BCCZ-MI-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL362BCCZ-MI-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the signal traces to reduce noise and interference.
  • The ADXL362BCCZ-MI-RL7 does not require calibration. It is a self-contained accelerometer that provides accurate measurements without the need for external calibration. However, it's recommended to perform a zero-g offset calibration to account for any offset errors.
  • The ADXL362BCCZ-MI-RL7 can measure accelerations up to ±200g, but it's recommended to operate within the specified range of ±50g for optimal performance and accuracy.
  • The ADXL362BCCZ-MI-RL7 is rated for operation from -40°C to 125°C, but its accuracy and performance may degrade at high temperatures. It's recommended to consult the datasheet and application notes for specific guidance on high-temperature operation.
  • The ADXL362BCCZ-MI-RL7 communicates through a standard SPI interface. Connect the SCL pin to the microcontroller's clock pin, the SDI pin to the microcontroller's MOSI pin, and the SDO pin to the microcontroller's MISO pin. Use a level shifter if necessary to match the voltage levels.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL362BCCZ-MI-RL7 Overview

Use the download button to access the ADXL362BCCZ-MI-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
