ADXL362BCCZ-R2 - Analog Devices

Description: Micropower, 3-Axis, ±2 g/±4 g/±8 g Digital Output MEMS Accelerometer

Download ADXL362BCCZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

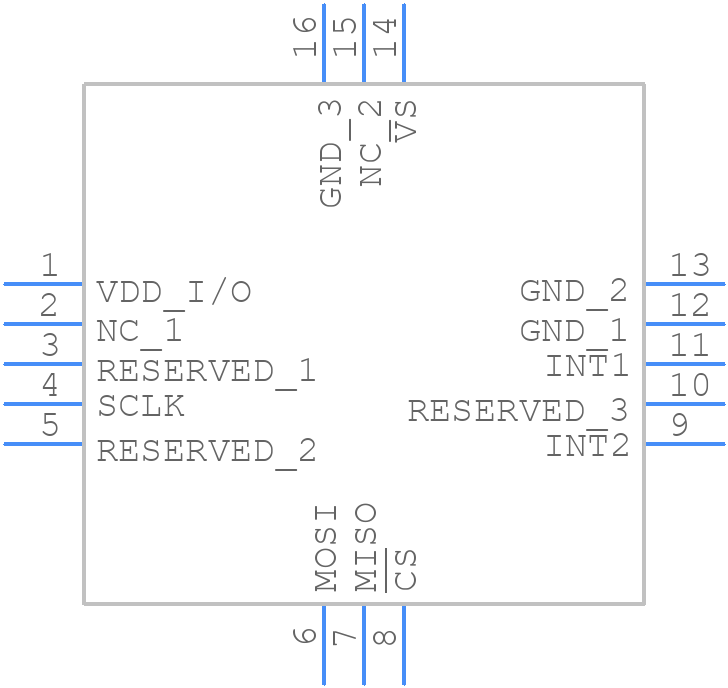

Symbol
ADXL362BCCZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL362BCCZ-R2 - Analog Devices PCB footprint - Other - Other - ADXL362BCCZ-R2
click to zoom
3D Models
ADXL362BCCZ-R2 - Analog Devices - 3D model - Other - ADXL362BCCZ-R2
click to zoom

ADXL362BCCZ-R2 Details

  • Manufacturer Part Number:

    ADXL362BCCZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA

  • Package Description:

    LGA-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CC-16-4

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B16

  • JESD-609 Code:

    e4

  • Length:

    3.25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFLGA

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.14 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

ADXL362BCCZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL362BCCZ-R2 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the accelerometer and the analog-to-digital converter (ADC). A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration of the ADXL362BCCZ-R2 involves applying a known acceleration to the device and adjusting the offset and sensitivity registers to achieve the desired output. A calibration procedure can be found in the ADXL362 datasheet, and calibration software is available from Analog Devices.
  • The ADXL362BCCZ-R2 has a maximum acceleration range of ±200 g, but it can be configured to measure accelerations as low as ±2 g. The device also has a high-pass filter that can be enabled to remove gravity from the measurement.
  • The ADXL362BCCZ-R2 is rated for operation from -40°C to +125°C, but its accuracy and sensitivity may degrade at high temperatures. It's recommended to characterize the device's performance at the expected operating temperature to ensure it meets the application's requirements.
  • The ADXL362BCCZ-R2 has a SPI-compatible interface that can be connected to a microcontroller's SPI port. The device requires a 1.8 V to 3.6 V power supply, and its output data rate can be configured to match the microcontroller's sampling rate.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL362BCCZ-R2 Overview

Use the download button to access the ADXL362BCCZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
