ADXL362BCCZ-RL7 - Analog Devices

Description: Accelerometer X, Y, Z Axis ±2g, 4g, 8g 6.25Hz ~ 400Hz 16-LGA (3x3.25) -40°C ~ 85°C 1.6V ~ 3.5V 6.25Hz ~ 400Hz

Download ADXL362BCCZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

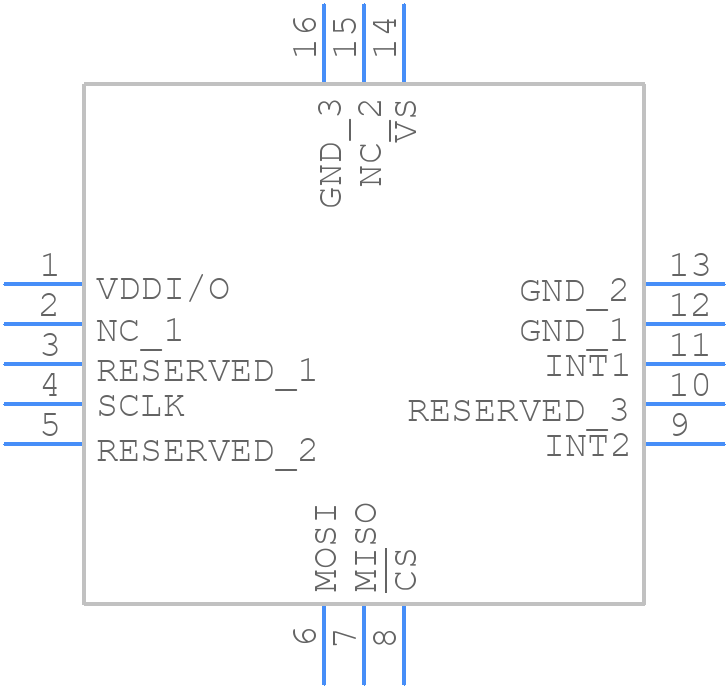

ADXL362BCCZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL362BCCZ-RL7 - Analog Devices PCB footprint - Other - Other - CC-16-4_2025-1.1
click to zoom
3D Models
ADXL362BCCZ-RL7 - Analog Devices - 3D model - Other - CC-16-4_2025-1.1
click to zoom

ADXL362BCCZ-RL7 Details

  • Manufacturer Part Number:

    ADXL362BCCZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA

  • Package Description:

    LGA-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CC-16-4

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B16

  • JESD-609 Code:

    e4

  • Length:

    3.25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFLGA

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.14 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

ADXL362BCCZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL362BCCZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The ADXL362BCCZ-RL7 does not require calibration. It is a self-contained accelerometer that provides accurate measurements without the need for external calibration. However, it's recommended to perform a zero-g offset calibration to account for any offset errors.
  • The ADXL362BCCZ-RL7 has a maximum acceleration range of ±200 g. However, it's recommended to operate the device within the specified range of ±50 g to ensure optimal performance and accuracy.
  • The ADXL362BCCZ-RL7 is rated for operation from -40°C to 125°C. However, the device's accuracy and sensitivity may degrade at high temperatures. It's recommended to consult the datasheet and application notes for specific guidance on using the device in high-temperature applications.
  • The ADXL362BCCZ-RL7 has a digital SPI interface that can be easily interfaced with a microcontroller. The device requires a 1.8 V to 3.6 V power supply, and the SPI interface operates at a maximum clock frequency of 5 MHz.
