ADXL362WBCCZ-RL - Analog Devices

Description: Micropower, 3-Axis, ±2 g/±4 g/±8 g Digital Output MEMS Accelerometer

Download ADXL362WBCCZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

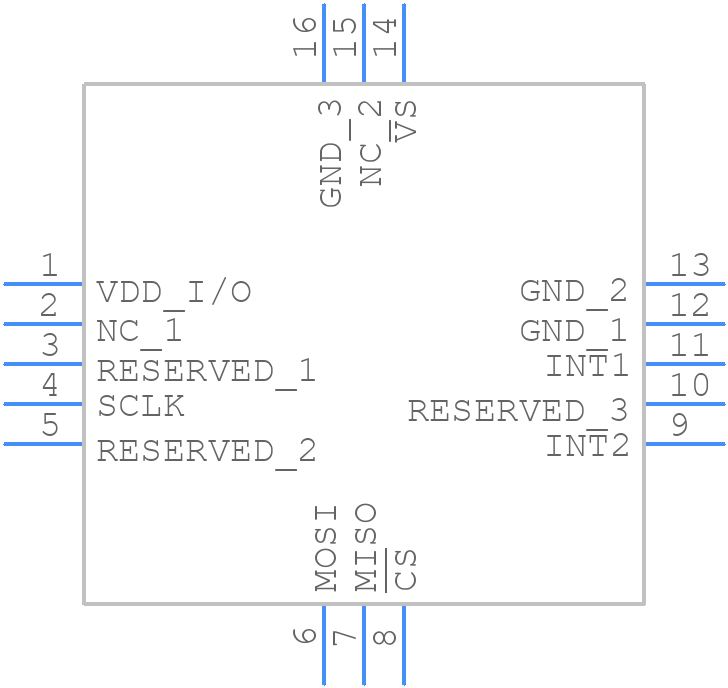

ADXL362WBCCZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL362WBCCZ-RL - Analog Devices PCB footprint - Other - Other - ADXL362WBCCZ-RL-5
click to zoom
3D Models
ADXL362WBCCZ-RL - Analog Devices - 3D model - Other - ADXL362WBCCZ-RL-5
click to zoom

ADXL362WBCCZ-RL Details

  • Manufacturer Part Number:

    ADXL362WBCCZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CC-16-4

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XBGA-N16

  • Length:

    3.25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TFLGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.14 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADXL362WBCCZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL362WBCCZ-RL involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration involves adjusting the sensitivity and offset of the accelerometer to match the specific requirements of your application. This can be done by taking measurements at multiple orientations and temperatures, and then applying corrections to the output data. Analog Devices provides a calibration guide and software tools to assist with this process.
  • The ADXL362WBCCZ-RL can measure accelerations up to ±50 g, but it's recommended to operate within the ±20 g range for optimal performance and accuracy.
  • The ADXL362WBCCZ-RL can be interfaced with a microcontroller using a SPI or I2C interface. The device requires a 1.8V to 3.6V power supply, and the interface lines should be properly terminated and filtered to minimize noise and ensure reliable communication.
  • The ADXL362WBCCZ-RL has a typical power consumption of 2.5 μA in measurement mode, making it suitable for battery-powered applications. The device also has a low-power mode that reduces power consumption to 0.1 μA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL362WBCCZ-RL Overview

Use the download button to access the ADXL362WBCCZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
