ADXL371BCCZ-RL7 - Analog Devices

Description: Accelerometers Micropower, 3-Axis, 200 g Digital Output, MEMS Accelerometer

Download ADXL371BCCZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

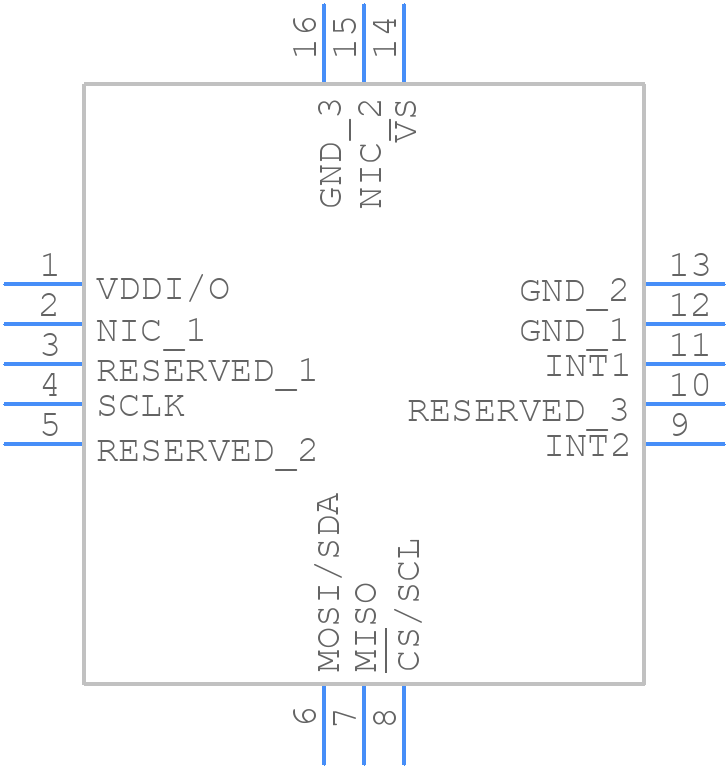

Symbol
ADXL371BCCZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL371BCCZ-RL7 - Analog Devices PCB footprint - Other - Other - ADXL371BCCZ-RL7-4
click to zoom
3D Models
ADXL371BCCZ-RL7 - Analog Devices - 3D model - Other - ADXL371BCCZ-RL7-4
click to zoom

ADXL371BCCZ-RL7 Details

  • Manufacturer Part Number:

    ADXL371BCCZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CC-16-4

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Body Breadth:

    3 mm

  • Body Height:

    1.06 mm

  • Body Length or Diameter:

    3.25 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    -10-4mA

  • Output Type:

    DIGITAL CURRENT

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC16,.1X.13,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.5 V

  • Supply Voltage-Min:

    2.5 V

  • Surface Mount:

    YES

ADXL371BCCZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL371BCCZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins.
  • Calibration involves applying a known acceleration to the device and adjusting the output to match the expected value. The ADXL371BCCZ-RL7 has a built-in self-test feature that can be used to calibrate the device.
  • The ADXL371BCCZ-RL7 can measure accelerations up to ±200g, but the maximum range may be limited by the specific application and the noise floor of the device.
  • Digital filtering techniques such as low-pass filtering or band-pass filtering can be used to remove noise and vibrations from the output signal. The ADXL371BCCZ-RL7 also has a built-in filter that can be enabled to reduce noise.
  • The ADXL371BCCZ-RL7 has a typical current consumption of 140 μA at 2.5 V, but this can vary depending on the specific application and the sampling rate.
