ADXL375BCCZ - Analog Devices

Description: ADXL375BCCZ Analog Devices, 3-Axis Accelerometer, I2C, Serial-3 Wire, Serial-4 Wire, Serial-SPI, 14-Pin LGA

Download ADXL375BCCZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

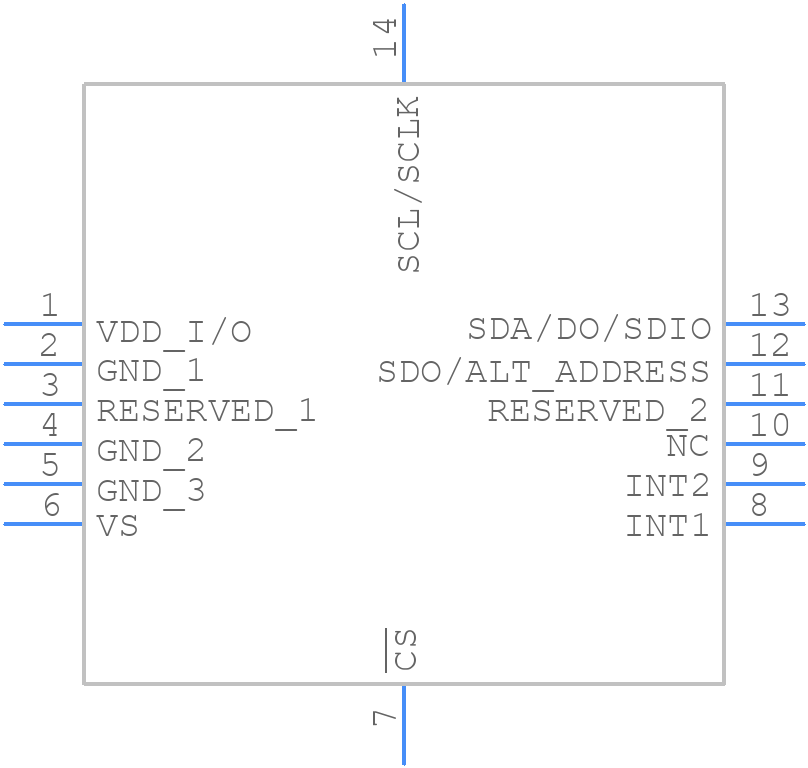

ADXL375BCCZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL375BCCZ - Analog Devices PCB footprint - Other - Other - CC-14-1
click to zoom
3D Models
ADXL375BCCZ - Analog Devices - 3D model - Other - CC-14-1
click to zoom

ADXL375BCCZ Details

  • Manufacturer Part Number:

    ADXL375BCCZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 3 MM, 1 MM HEIGHT, ROHS COMPLIANT, LGA-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    CC-14-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XBGA-B14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFLGA

  • Package Equivalence Code:

    LGA14,3X6,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

ADXL375BCCZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for the ADXL375BCCZ can be found in the ADXL375 evaluation board design files, which are available on the Analog Devices website. It's essential to follow these guidelines to ensure proper operation and minimize noise.
  • Calibration of the ADXL375BCCZ involves zeroing the sensor and scaling the output. This can be done by taking multiple readings at different orientations and temperatures, and then applying the necessary corrections. The ADXL375 datasheet provides a calibration procedure, and Analog Devices also offers a calibration tool.
  • The ADXL375BCCZ can measure accelerations up to ±200 g, but it's essential to note that the maximum acceleration range may be limited by the specific application and the sensor's orientation. It's recommended to consult the datasheet and application notes for more information.
  • Noise and vibrations can be filtered out using digital filters, such as low-pass filters or band-pass filters, depending on the specific application requirements. Analog Devices provides example code and application notes on filtering and signal processing for the ADXL375BCCZ.
  • The ADXL375BCCZ is rated for operation up to 125°C, but it's essential to consider the specific application requirements and potential thermal limitations. It's recommended to consult the datasheet and application notes for more information on high-temperature operation.
