ADXL377BCPZ-RL - Analog Devices

Description: Accelerometer Triple ±200g 3V 5.8mV/g to 7.2mV/g 16-Pin LFCSP EP T/R

Download ADXL377BCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

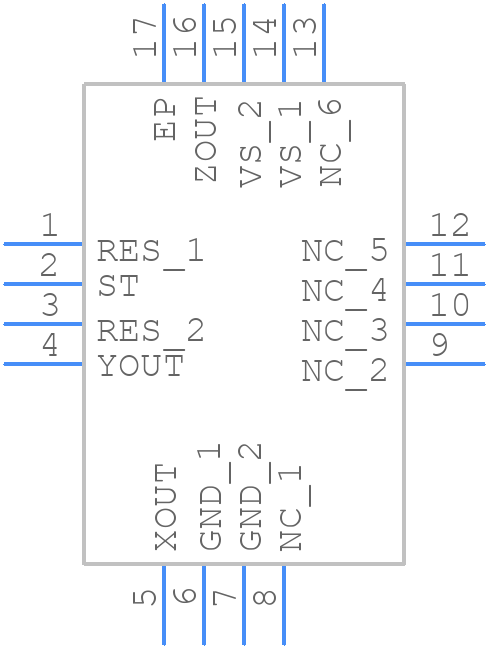

ADXL377BCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL377BCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP] 3 mm × 3 mm Body and 1.45 mm Package Height (CP-16-28)
click to zoom
3D Models
ADXL377BCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP] 3 mm × 3 mm Body and 1.45 mm Package Height (CP-16-28)
click to zoom

ADXL377BCPZ-RL Details

  • Manufacturer Part Number:

    ADXL377BCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-28

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADXL377BCPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL377BCPZ-RL involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration of the ADXL377BCPZ-RL involves applying known accelerations to the device and measuring the output. A calibration procedure typically involves applying 0g, 1g, and -1g accelerations to the device and adjusting the offset and sensitivity to achieve accurate measurements.
  • The ADXL377BCPZ-RL can measure accelerations up to ±200g, but it's recommended to limit the acceleration range to ±100g to ensure accurate measurements and prevent damage to the device.
  • The ADXL377BCPZ-RL is rated for operation up to 125°C, but its accuracy and sensitivity may degrade at high temperatures. It's recommended to use the device within its specified operating temperature range of -40°C to 85°C for optimal performance.
  • Noise and vibrations can be filtered out using digital filters such as low-pass filters or notch filters. Analog filters can also be used, but digital filters are more flexible and easier to implement. The choice of filter depends on the specific application and the type of noise present.
