ADXRS450BRGZ - Analog Devices

Description: Gyroscopes SOIC Hi Perf, Digital Output Gyro +/-300

Download ADXRS450BRGZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

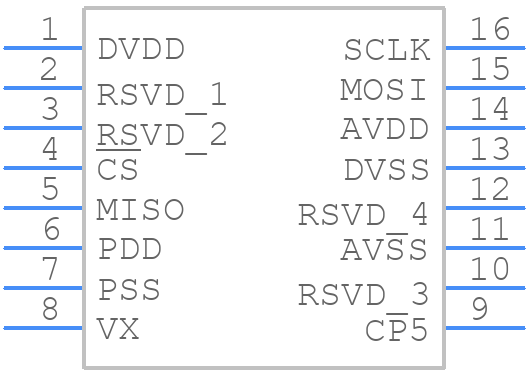

ADXRS450BRGZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXRS450BRGZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RG-16-1
click to zoom
3D Models
ADXRS450BRGZ - Analog Devices - 3D model - Small Outline Packages - RG-16-1
click to zoom

ADXRS450BRGZ Details

  • Manufacturer Part Number:

    ADXRS450BRGZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RG-16-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    7A994

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.73 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.8 mm

ADXRS450BRGZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout and placement for the ADXRS450BRGZ involves keeping the device away from high-current carrying traces, avoiding vias under the device, and using a solid ground plane to reduce noise. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADXRS450BRGZ does not require calibration in the classical sense. However, it's recommended to perform a zero-rate offset calibration to account for any bias in the sensor. This can be done by taking the average of multiple readings at zero angular rate.
  • The ADXRS450BRGZ is sensitive to temperature changes, which can affect its sensitivity and offset. The device is specified to operate from -40°C to 125°C, and the user should consider temperature compensation or calibration to ensure accurate readings over the operating temperature range.
  • The ADXRS450BRGZ output can be filtered using a low-pass filter to reduce noise and aliasing. A 2nd-order Butterworth filter with a cutoff frequency of 100 Hz to 200 Hz is recommended. Digital filtering techniques can also be used, such as a moving average filter or a Kalman filter.
  • The recommended power-on sequence for the ADXRS450BRGZ is to apply VDD first, followed by VIO. The device should be powered on in the following order: VDD, VIO, and then the clock signal. This ensures proper device initialization and prevents latch-up.
