ADXRS453BRGZ - Analog Devices

Description: ADXRS453BRGZ Analog Devices, Gyroscope, SPI, 16-Pin SOIC

Download ADXRS453BRGZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

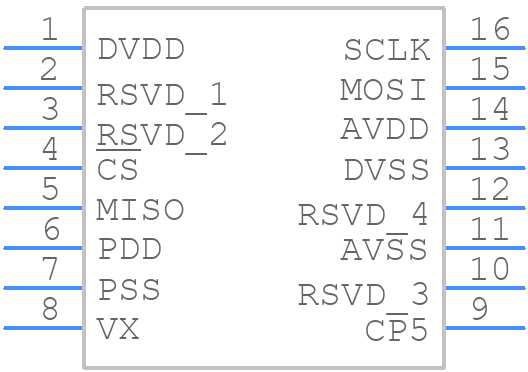

ADXRS453BRGZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXRS453BRGZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADXRS453BRGZ
click to zoom
3D Models
ADXRS453BRGZ - Analog Devices - 3D model - Small Outline Packages - ADXRS453BRGZ
click to zoom

ADXRS453BRGZ Details

  • Manufacturer Part Number:

    ADXRS453BRGZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RG-16-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    7A994

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.73 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.8 mm

ADXRS453BRGZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout and placement for the ADXRS453BRGZ involves keeping the device away from high-current carrying traces, avoiding vias under the device, and using a solid ground plane to reduce noise. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADXRS453BRGZ does not require calibration in the classical sense. However, it's recommended to perform a zero-rate offset calibration to account for any bias in the sensor. This can be done by taking the average output of the sensor when it's stationary and subtracting it from the output signal.
  • The ADXRS453BRGZ is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • The ADXRS453BRGZ requires a high-pass filter to remove the bias voltage and allow the sensor to measure the angular rate. A simple RC filter with a cutoff frequency of around 0.01 Hz to 0.1 Hz can be used. The exact filter design will depend on the specific application requirements.
  • It's recommended to use a 10 μF ceramic capacitor in parallel with a 100 nF ceramic capacitor to decouple the power supply pins of the ADXRS453BRGZ. This will help to reduce noise and ensure stable operation.
