- Part Number ADXRS620BBGZ
- Manufacturer Analog Devices
- Pin Count 32
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - BG-32-3
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADXRS620BBGZ Details
-
Manufacturer Part Number:
ADXRS620BBGZ
-
Source Url Status Check Date:
2013-05-01 14:56:52.307
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
BGA
-
Package Description:
BGA-32
-
Pin Count:
32
-
Manufacturer Package Code:
BG-32-3
-
Country Of Origin:
Philippines
-
ECCN Code:
7A994
ADXRS620BBGZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADXRS620BBGZ involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device's pins. A 4-layer PCB with a dedicated ground plane is recommended.
-
Calibration of the ADXRS620BBGZ involves applying a known rotation to the device and measuring the output. The device can be calibrated using a rate table or a calibration fixture. The calibration process typically involves applying a series of known rotations and recording the output, then using this data to calculate the scale factor and offset.
-
The recommended power-up sequence for the ADXRS620BBGZ is to apply VDD first, followed by VIO. This ensures that the internal voltage regulators are powered up correctly. It is also recommended to add a power-on reset circuit to ensure that the device is properly reset during power-up.
-
The output of the ADXRS620BBGZ can be filtered using a low-pass filter to remove high-frequency noise. A simple RC filter or a more complex digital filter can be used, depending on the application requirements. The filter cutoff frequency should be chosen based on the desired bandwidth and noise tolerance.
-
The ADXRS620BBGZ is specified to operate over a temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for more information on temperature-related specifications.
Trust Checks
Community Provided
System Verified
Community Approved
ADXRS620BBGZ Overview

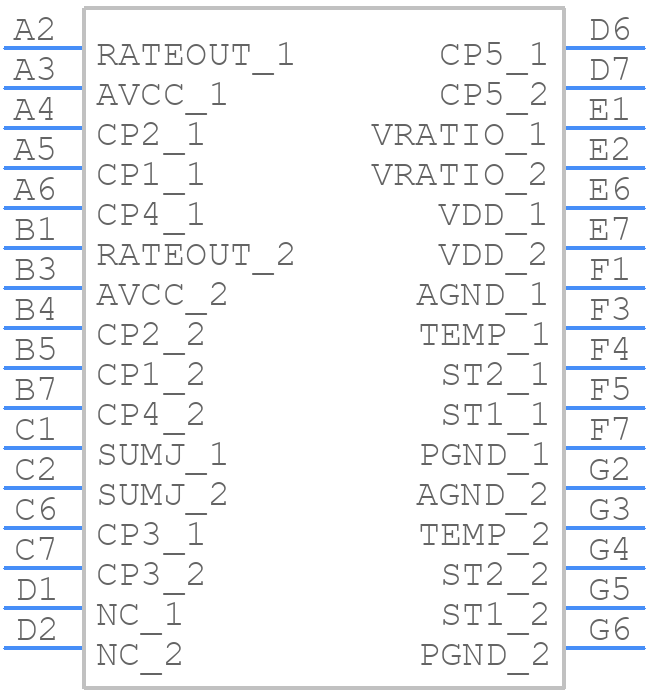

Use the download button to access the ADXRS620BBGZ schematic symbol, PCB footprint, and 3D model.
