ADXRS623BBGZ - Analog Devices

Description: ANALOG DEVICES - ADXRS623BBGZ - GYROSCOPE, MEMS, YAW, +/-150DPS, 32BGA

Download ADXRS623BBGZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

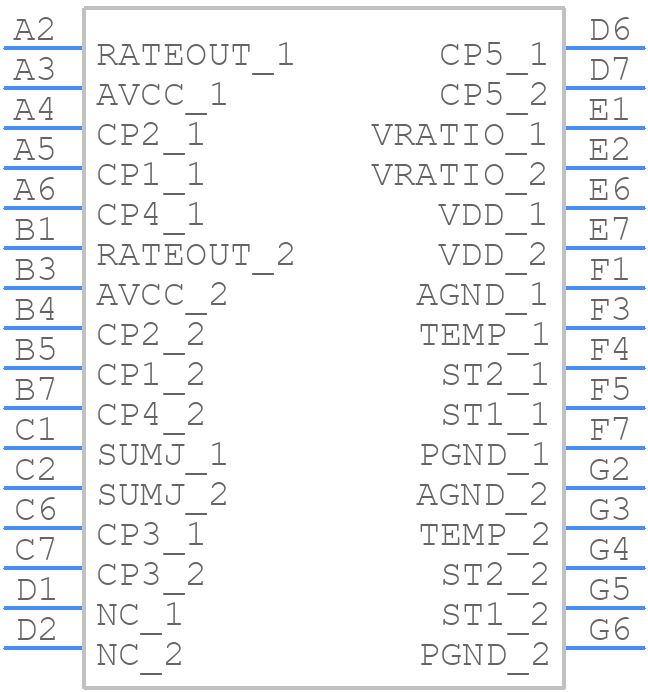

ADXRS623BBGZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXRS623BBGZ - Analog Devices PCB footprint - BGA - BGA - ADXRS623
click to zoom
3D Models
ADXRS623BBGZ - Analog Devices - 3D model - BGA - ADXRS623
click to zoom

ADXRS623BBGZ Details

  • Manufacturer Part Number:

    ADXRS623BBGZ

  • Source Url Status Check Date:

    2013-05-01 14:56:52.367

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    BG-32-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    7A994

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-CBGA-B32

  • Length:

    6.85 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA32,7X7,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    6.85 mm

ADXRS623BBGZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout and placement for the ADXRS623BBGZ involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADXRS623BBGZ does not require calibration in the classical sense. However, it is recommended to perform a zero-rate offset calibration to account for any bias in the sensor. This can be done by taking the average of the sensor output over a period of time when the device is at rest.
  • The ADXRS623BBGZ is sensitive to temperature changes, which can affect its sensitivity and offset. The device is specified to operate over a temperature range of -40°C to 125°C, and the user should consider temperature compensation or calibration to ensure accurate measurements.
  • The ADXRS623BBGZ output can be filtered using a low-pass filter to reduce noise and aliasing. A 2nd-order Butterworth filter with a cutoff frequency of around 100 Hz is recommended. Digital filtering techniques can also be used, such as a moving average filter or a Kalman filter.
  • The power-on sequence for the ADXRS623BBGZ involves applying power to the device in the following order: VDD, VIO, and then CLKIN. The device requires a power-on reset (POR) circuit to ensure proper initialization.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXRS623BBGZ Overview

Use the download button to access the ADXRS623BBGZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXRS, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
