ADXRS624BBGZ-RL - Analog Devices

Description: MEMS Gyroscopes Single Axis ±75°/s 32-Pin CBGA T/R

Download ADXRS624BBGZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

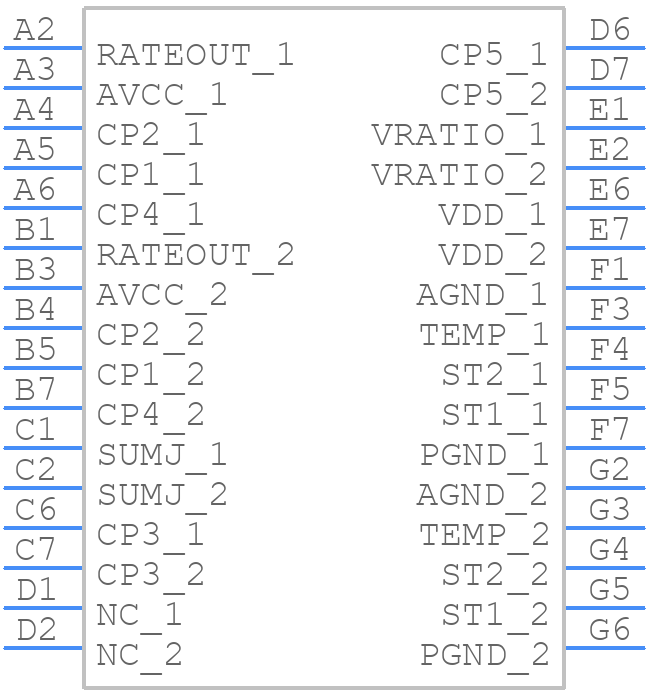

ADXRS624BBGZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXRS624BBGZ-RL - Analog Devices PCB footprint - BGA - BGA - BG-32-3
click to zoom
3D Models
ADXRS624BBGZ-RL - Analog Devices - 3D model - BGA - BG-32-3
click to zoom

ADXRS624BBGZ-RL Details

  • Manufacturer Part Number:

    ADXRS624BBGZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    BG-32-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    7A994

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-CBGA-B32

  • JESD-609 Code:

    e3

  • Length:

    6.85 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA32,7X7,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    6.85 mm

ADXRS624BBGZ-RL Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for the ADXRS624BBGZ-RL can be found in the ADXRS624BBGZ-RL evaluation board documentation, which is available on the Analog Devices website. It is essential to follow the recommended layout and land pattern to ensure optimal performance and minimize noise.
  • The ADXRS624BBGZ-RL does not require calibration. It is a self-contained, factory-calibrated device. However, if you need to perform any adjustments, you can use the zero-rate offset adjustment pins (ZROFFSET) to adjust the output to zero at a specific temperature.
  • The ADXRS624BBGZ-RL is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. It is essential to consult the datasheet for specific temperature-related performance characteristics.
  • Yes, the ADXRS624BBGZ-RL is designed to operate in high-vibration environments. It has a high shock survivability of 10,000 g and can withstand vibrations up to 10,000 Hz. However, it is essential to ensure that the device is properly mounted and secured to the PCB to prevent damage.
  • The ADXRS624BBGZ-RL has an analog output that can be interfaced with a microcontroller's analog-to-digital converter (ADC). You can use a simple op-amp circuit to amplify and filter the output signal before feeding it into the microcontroller's ADC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXRS624BBGZ-RL Overview

Use the download button to access the ADXRS624BBGZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXRS, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
