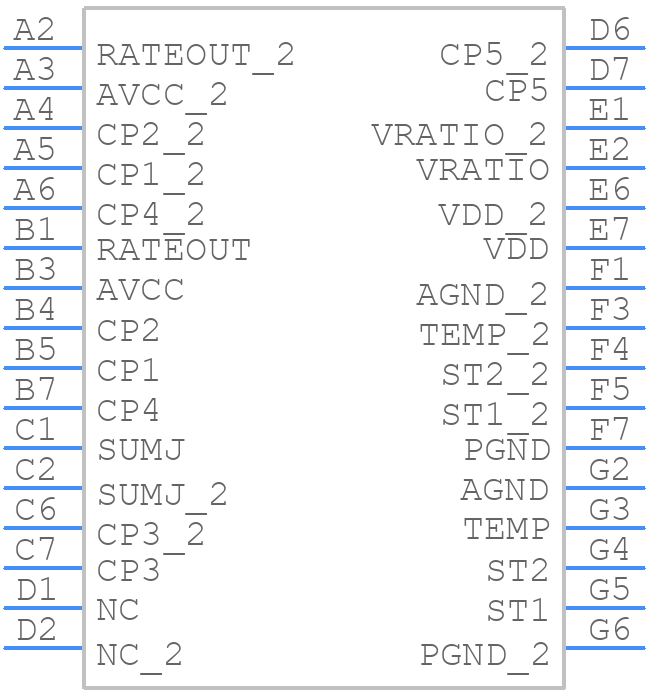

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADXRS624BBGZ
- Part Number ADXRS624BBGZ
- Manufacturer Analog Devices
- Pin Count 32
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - BGA32C80P7X7-685X685-380
- Released Date Jan 10, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADXRS624BBGZ Details
-
Manufacturer Part Number:
ADXRS624BBGZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
BGA
-
Package Description:
BGA-32
-
Pin Count:
32
-
Manufacturer Package Code:
BG-32-3
-
Country Of Origin:
Philippines
-
ECCN Code:
7A994
-
HTS Code:
8542.39.00.01
ADXRS624BBGZ Frequently Asked Questions (FAQs)
-
The recommended PCB layout and placement for the ADXRS624BBGZ involves keeping the device away from high-current carrying traces, avoiding vias under the device, and using a solid ground plane to reduce noise. A 4-layer PCB with a dedicated ground plane is recommended.
-
Calibration of the ADXRS624BBGZ involves applying a known input rotation to the device and measuring the output. The device should be calibrated at multiple temperatures to account for temperature drift. A calibration routine can be implemented using a microcontroller or a dedicated calibration tool.
-
The recommended power-on sequence for the ADXRS624BBGZ involves applying VDD before VIO. The power supplies should be ramped up slowly to prevent damage to the device. A power-on reset circuit can be used to ensure a clean power-up sequence.
-
The output of the ADXRS624BBGZ can be filtered using a low-pass filter to reduce noise. A simple RC filter or a more complex digital filter can be used, depending on the application requirements. The filter cutoff frequency should be chosen based on the desired bandwidth and noise reduction.
-
The maximum operating temperature range for the ADXRS624BBGZ is -40°C to +125°C. However, the device performance may degrade at extreme temperatures, and the user should consult the datasheet for temperature-related specifications.
Trust Checks
System Verified
ADXRS624BBGZ Overview
Use the download button to access the ADXRS624BBGZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXRS,
or try a keyword search, such as Other Signal Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
