ADXRS652BBGZ - Analog Devices

Description: Analog Devices ADXRS652BBGZ 3-Axis Gyroscope, 0.01 → 2500 Hz 5V 32-Pin CBGA

Download ADXRS652BBGZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

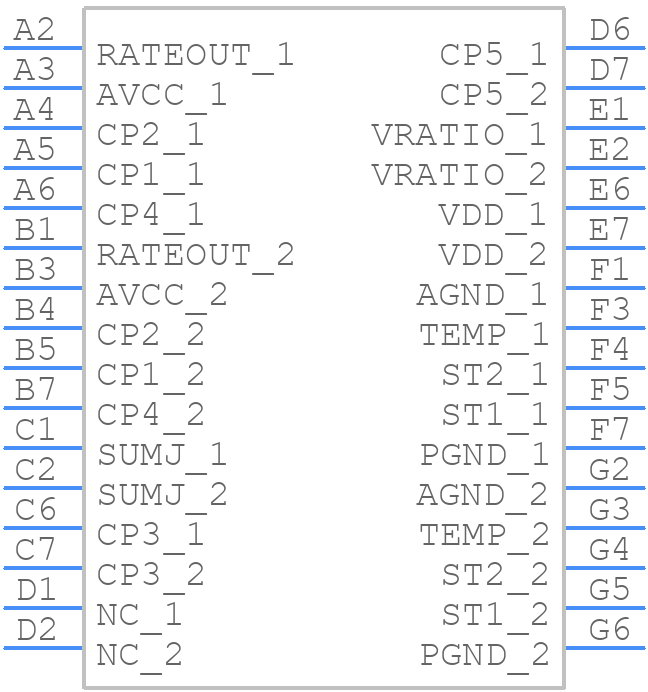

ADXRS652BBGZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXRS652BBGZ - Analog Devices PCB footprint - BGA - BGA - BG-32-3
click to zoom
3D Models
ADXRS652BBGZ - Analog Devices - 3D model - BGA - BG-32-3
click to zoom

ADXRS652BBGZ Details

  • Manufacturer Part Number:

    ADXRS652BBGZ

  • Source Url Status Check Date:

    2013-05-01 14:56:52.433

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    7 X 7 MM, 3 MM HEIGHT, ROHS COMPLIANT, CERAMIC, BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    BG-32-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    7A994

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-CBGA-B32

  • Length:

    6.85 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA32,7X7,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    6.85 mm

ADXRS652BBGZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout and placement for the ADXRS652BBGZ involves keeping the device away from high-current carrying traces, avoiding vias under the device, and using a solid ground plane to reduce noise. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADXRS652BBGZ does not require calibration in the classical sense. However, it's recommended to perform a zero-rate offset calibration to account for any bias in the sensor. This can be done by taking the average of multiple readings at zero angular rate.
  • The ADXRS652BBGZ has a temperature range of -40°C to 125°C. Temperature changes can affect the sensor's sensitivity and offset. It's recommended to use temperature compensation techniques or to calibrate the sensor over the operating temperature range.
  • The ADXRS652BBGZ has a digital SPI interface. The sensor can be interfaced with a microcontroller using a 3-wire SPI interface (SCLK, MOSI, MISO). The microcontroller should be configured to operate at a clock frequency of 1-5 MHz.
  • The ADXRS652BBGZ has a typical current consumption of 3.5 mA at 2.5 V supply voltage. The power consumption can be reduced by using the low-power mode or by dynamically adjusting the ODR (Output Data Rate).
