AE101MD1AB04 - TE Connectivity

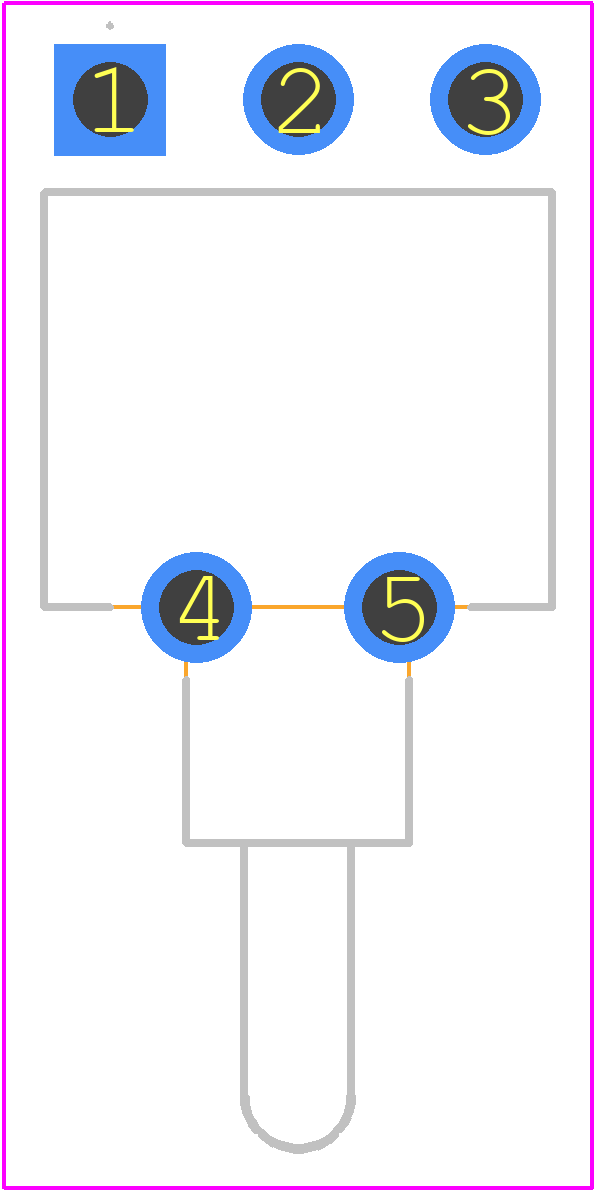

AE101MD1AB04 Details

• Manufacturer Part Number:

  AE101MD1AB04

• Brand Name:

  Alcoswitch

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Actuator Finish:

  NICKEL

• Actuator Type:

  LEVER

• Body Breadth:

  12.7 mm

• Body Height:

  6.6 mm

• Body Length or Diameter:

  12.7 mm

• Center Contact Plating:

  GOLD

• Contact (AC) Max Rating R Load:

  .02A@20VAC

• Contact Current(AC)-Max:

  0.4 A

• Contact Current(DC)-Max:

  0.4 A

• Contact (DC) Max Rating R Load:

  .02A@20VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  20 V

• Contact Voltage(DC)-Max:

  20 V

• Dielectric Withstand Volts:

  1000 V

• Electrical Life:

  6000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• Insulation Resistance:

  1000000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  PANEL MOUNT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Sealing:

  EPOXY TERMINAL SEALED

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Finish:

  Gold (Au) - with Nickel (Ni) barrier

• Termination Type:

  SOLDER
