AE101MD1AQ04 - TE Connectivity

Description: Switch,toggle,1P,IP67,on on,PCB mount,5A

Download AE101MD1AQ04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AE101MD1AQ04 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

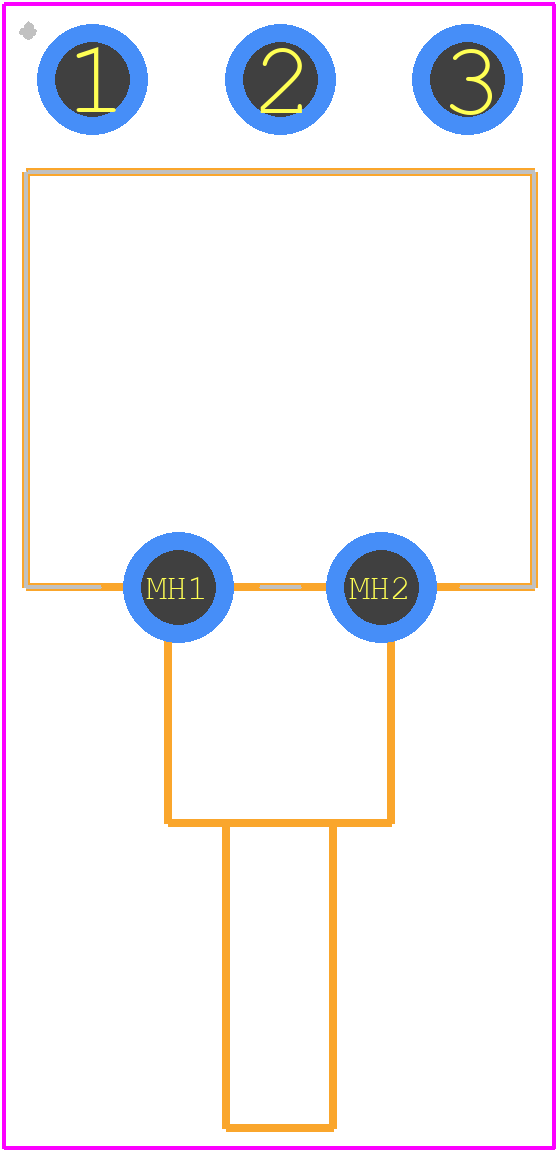

AE101MD1AQ04 - TE Connectivity PCB footprint - Other - Other - AE101MD1AQ04-6
click to zoom
3D Models
AE101MD1AQ04 - TE Connectivity - 3D model - Other - AE101MD1AQ04-6
click to zoom

AE101MD1AQ04 Details

  • Manufacturer Part Number:

    AE101MD1AQ04

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    14 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Actuator Finish:

    NICKEL

  • Actuator Type:

    LEVER

  • Body Breadth:

    12.7 mm

  • Body Height:

    6.6 mm

  • Body Length or Diameter:

    12.7 mm

  • Center Contact Plating:

    SILVER

  • Contact (AC) Max Rating R Load:

    5A@120VAC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact (DC) Max Rating R Load:

    5A@28VDC

  • Contact Function:

    ON-ON

  • Contact Resistance:

    0.01 mΩ

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    28 V

  • Dielectric Withstand Volts:

    1000 V

  • Electrical Life:

    6000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e4

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPDT

  • Switch Type:

    TOGGLE SWITCH

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Termination Type:

    SOLDER

AE101MD1AQ04 Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website. It's essential to follow these guidelines to ensure proper assembly and performance of the component.
  • To prevent damage, handle the AE101MD1AQ04 by the package body, avoid touching the leads or electrical contacts, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
  • While the datasheet provides a recommended operating temperature range, the maximum operating temperature range for AE101MD1AQ04 is typically -40°C to 125°C. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitable temperature range for your specific application.
  • Yes, AE101MD1AQ04 is designed to withstand high-vibration and high-shock environments. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitable mounting and assembly methods to ensure the component's reliability in such environments.
  • The recommended torque value for securing the AE101MD1AQ04 to the PCB is typically provided in the datasheet or application notes. However, as a general guideline, a torque value of 0.5-1.5 N·m is commonly used for this component.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AE101MD1AQ04 Overview

Use the download button to access the AE101MD1AQ04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AE101, or try a keyword search, such as Toggle Switches

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
