AEDR-8501-102 - Avago Technologies

Description: Reflective Optical Sensor 0.039" (1mm) Codewheel/Codestrip 8-SMD Module

Download AEDR-8501-102 Model

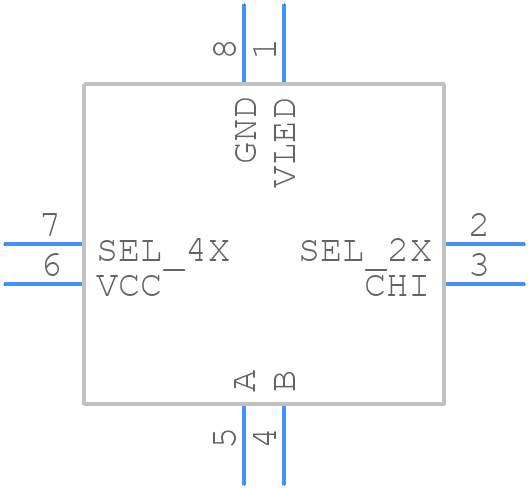

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AEDR-8501-102 - Avago Technologies PCB footprint - Other - Other - AEDR-8501-102-3
click to zoom
3D Models
AEDR-8501-102 - Avago Technologies  - 3D model - Other - AEDR-8501-102-3
click to zoom

AEDR-8501-102 Details

  • Manufacturer Part Number:

    AEDR-8501-102

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3.95 X 3.40 MM, 0.956 MM HEIGHT, LEADLESS, SURFACE MOUNT PACKAGE-8

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    9

  • Additional Feature:

    TTL COMPATIBLE

  • Configuration:

    SINGLE, 3 CHANNELS

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    INCREMENTAL ROTARY ENCODER

  • Packing Method:

    TR

  • Supply Voltage-Max:

    5.5 V

  • Surface Mount:

    YES

AEDR-8501-102 Frequently Asked Questions (FAQs)

  • Broadcom recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
  • Ensure that the device is operated within the recommended voltage and current limits, and that the PCB is designed to minimize thermal gradients. Additionally, consider using thermal shielding or heat sinks to maintain a stable temperature.
  • The input clock signal should be a differential signal with a frequency range of 25 MHz to 200 MHz, and an amplitude of 200 mV to 1 V. The clock signal should also be AC-coupled to the device.
  • Optimize power consumption by using the lowest possible supply voltage, reducing the clock frequency, and using the device's power-down modes when not in use. Additionally, consider using a low-dropout regulator (LDO) to minimize power loss.
  • The recommended settings for the internal registers can be found in the device's programming guide. It is essential to follow the recommended settings to ensure optimal performance and prevent device damage.
