AFBR-1539Z - Avago Technologies

Description: Fiber Optic Transmitter 650nm 2.3V (Max) 30 mA Versatile Link 20 V 30 pF Versatile Link

Download AFBR-1539Z Model

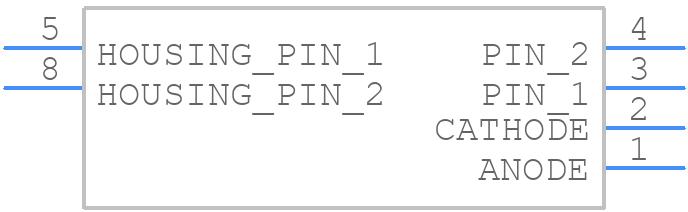

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AFBR-1539Z - Avago Technologies PCB footprint - Other - Other - AFBR-1539Z-1
click to zoom
3D Models
AFBR-1539Z - Avago Technologies  - 3D model - Other - AFBR-1539Z-1
click to zoom

AFBR-1539Z Details

  • Manufacturer Part Number:

    AFBR-1539Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    5

  • Body Breadth:

    7.6 mm

  • Body Height:

    18.9 mm

  • Body Length or Diameter:

    18.1 mm

  • Communication Standard:

    RS-232, RS-485

  • Emitter/Detector Type:

    LED

  • Fiber Optic Device Type:

    TRANSMITTER

  • Fiber Type:

    POF, PCS

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Operating Wavelength-Max:

    685 nm

  • Operating Wavelength-Min:

    630 nm

  • Operating Wavelength-Nom:

    650 nm

  • Optical Power Output-Nom:

    0.06 mW

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Transmission Type:

    ANALOG

AFBR-1539Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal reflections. A 50-ohm microstrip transmission line should be used to connect the device to the antenna.
  • The device requires a single 3.3V power supply. A 10uF capacitor should be connected between the VCC pin and ground to filter out noise. A 1kohm resistor should be connected between the EN pin and VCC to enable the device.
  • The device is rated for operation from -40°C to +85°C. However, the optimal operating temperature range is from 0°C to 70°C for maximum performance and reliability.
  • Use a spectrum analyzer to check the transmitted signal spectrum for any signs of distortion or interference. Check the device's power supply voltage and ensure it is within the recommended range. Use a logic analyzer to verify the device's control signals and ensure they are correct.
  • Yes, multiple AFBR-1539Z devices can be used in a multi-device configuration. However, each device should have its own antenna and be spaced at least 10mm apart to minimize interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFBR-1539Z Overview

Use the download button to access the AFBR-1539Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFBR-, or try a keyword search, such as Fiber Optic Transmitters
