AFBR-1634Z - Avago Technologies

Description: Avago, Fibre Optics, AFBR-1634Z

Download AFBR-1634Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

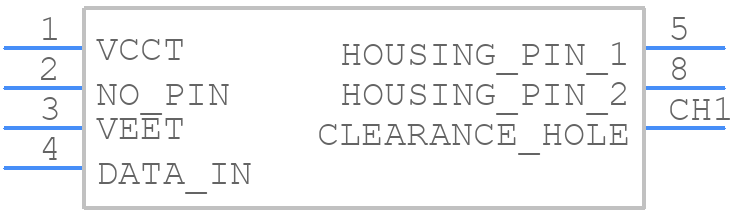

AFBR-1634Z - Avago Technologies - PCB symbol
click to zoom
PCB Footprints

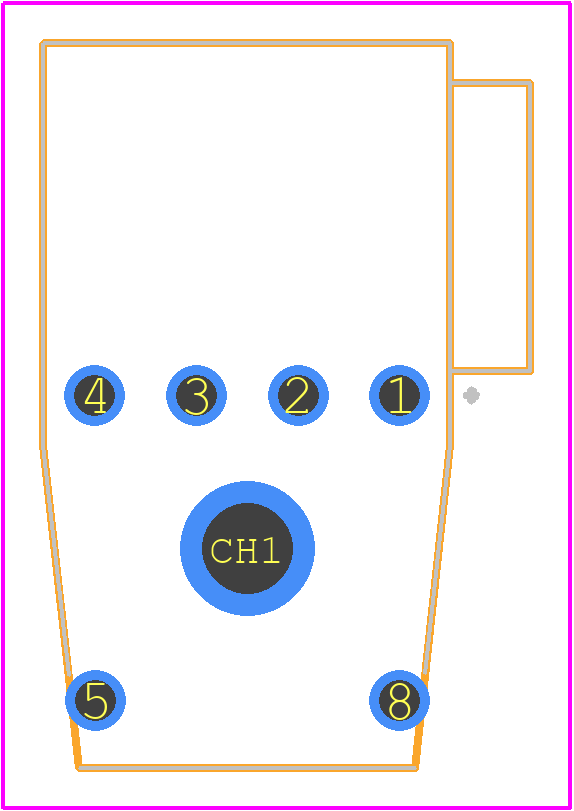

AFBR-1634Z - Avago Technologies PCB footprint - Other - Other - AFBR-1634Z-1
click to zoom
3D Models
AFBR-1634Z - Avago Technologies - 3D model - Other - AFBR-1634Z-1
click to zoom

AFBR-1634Z Details

  • Manufacturer Part Number:

    AFBR-1634Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    5

  • Additional Feature:

    IT ALSO HAS SUPPLY VOLTAGE 4.75 TO 5.25 V, PCS FIBER TYPE AND OUPUT OPTICAL POWER IS -13 DBM

  • Communication Standard:

    RS-232, RS-485

  • Emitter/Detector Type:

    LED

  • Fiber Optic Device Type:

    TRANSMITTER

  • Fiber Type:

    POF

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Operating Wavelength-Max:

    685 nm

  • Operating Wavelength-Min:

    630 nm

  • Operating Wavelength-Nom:

    658 nm

  • Optical Power Output-Nom:

    0.63 mW

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Transmission Type:

    DIGITAL

AFBR-1634Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal reflections. A 50-ohm microstrip transmission line should be used to connect the device to the antenna.
  • The device requires a single 3.3V power supply. A 10uF capacitor should be connected between the VCC pin and the GND pin to filter out noise. A 1kohm resistor should be connected between the EN pin and the VCC pin to enable the device.
  • The device is rated for operation from -40°C to 85°C. However, the optimal operating temperature range is from 0°C to 70°C for maximum performance and reliability.
  • Use a spectrum analyzer to check the transmitted signal spectrum and ensure it meets the required specifications. Check the device's power supply and biasing to ensure it is within the recommended range. Use a logic analyzer to check the device's control signals and ensure they are correct.
  • Yes, the device can be used in a multi-device configuration. However, each device should have its own antenna and transmission line to prevent signal interference. The devices should be spaced at least 10mm apart to prevent electromagnetic interference.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFBR-1634Z Overview

Use the download button to access the AFBR-1634Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFBR-, or try a keyword search, such as Fiber Optic Transmitters
