AFBR-5803ATQZ - Avago Technologies

Description: Transceiver Module Ethernet 100Mbps 1300nm 3.3V, 5V ST Duplex Through Hole

Download AFBR-5803ATQZ Model

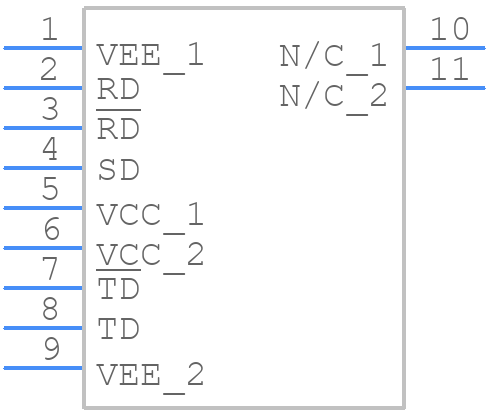

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

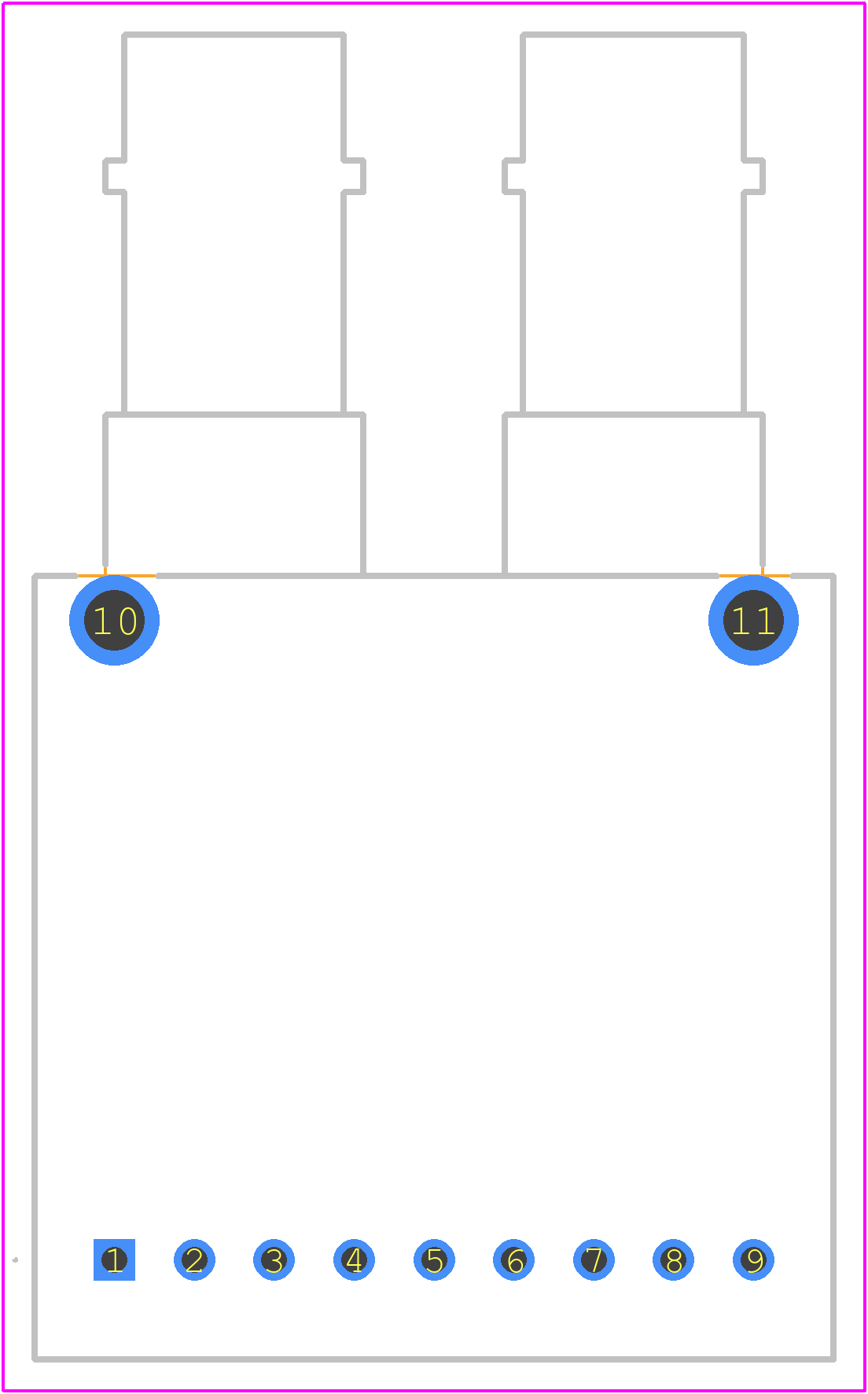

PCB Footprints
AFBR-5803ATQZ - Avago Technologies PCB footprint - Other - Other - AFBR-5803ATQZ-3
click to zoom
3D Models
AFBR-5803ATQZ - Avago Technologies  - 3D model - Other - AFBR-5803ATQZ-3
click to zoom

AFBR-5803ATQZ Details

  • Manufacturer Part Number:

    AFBR-5803ATQZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SIP

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    4

  • Additional Feature:

    IT ALSO OPERATES VOLTAGE RANGES FROM 4.75V TO 5.25V, 1X9 ARRAY

  • Body Breadth:

    25.4 mm

  • Body Height:

    12 mm

  • Body Length or Diameter:

    24.8 mm

  • Built-in Feature:

    AMPLIFIER

  • Communication Standard:

    ATM, OC-3C, SONET

  • Connection Type:

    ST CONNECTOR

  • Data Rate (Rx):

    155 Mbps

  • Data Rate (Tx):

    155 Mbps

  • Emitter/Detector Type:

    LED, PIN PHOTODIODE

  • Fiber Optic Device Type:

    TRANSCEIVER

  • Fiber Type:

    50/125, 62.5/125, MMF

  • JESD-609 Code:

    e3

  • Mounting Feature:

    BOARD/PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Operating Wavelength-Max:

    1380 nm

  • Operating Wavelength-Min:

    1270 nm

  • Operating Wavelength-Nom:

    1308 nm

  • Optical Power Output-Nom:

    0.022 mW

  • Package Style:

    SIP

  • Supply Voltage-Max:

    3.5 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier
