AFBR-5805Z - Avago Technologies

Description: Broadcom AFBR-5805Z Fibre Optic Transceiver, SC Connector, 100Mbit/s, 1380Nm 9-Pin SIP

Download AFBR-5805Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AFBR-5805Z - Avago Technologies - PCB symbol
click to zoom
PCB Footprints

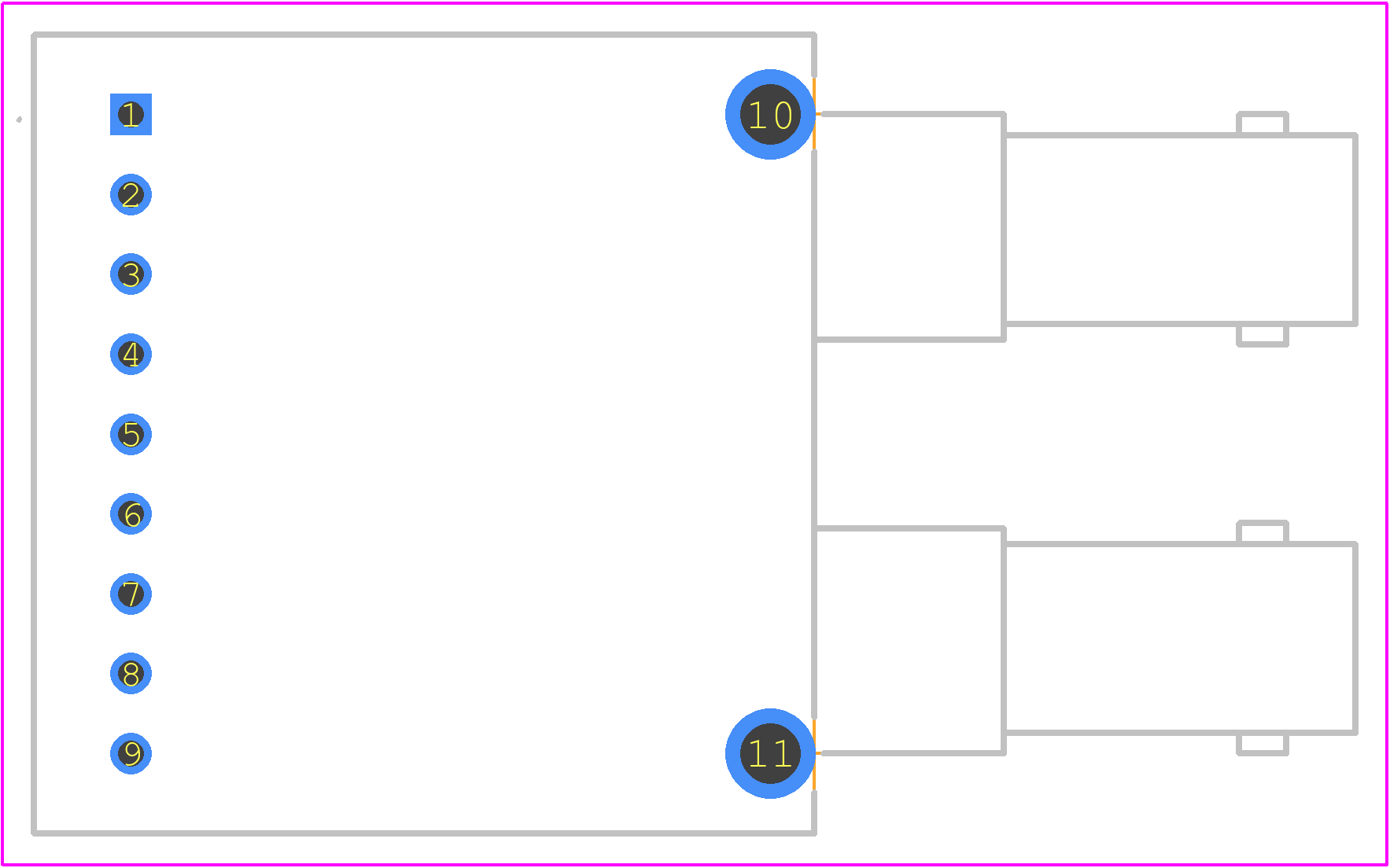

AFBR-5805Z - Avago Technologies PCB footprint - Other - Other - AFBR-5805Z-3
click to zoom
3D Models
AFBR-5805Z - Avago Technologies - 3D model - Other - AFBR-5805Z-3
click to zoom

AFBR-5805Z Details

  • Manufacturer Part Number:

    AFBR-5805Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    3

  • Body Breadth:

    25.4 mm

  • Body Height:

    10.35 mm

  • Body Length or Diameter:

    25.4 mm

  • Built-in Feature:

    AMPLIFIER

  • Communication Standard:

    ATM, OC-3, SDH, SONET, STM-1

  • Connection Type:

    SC CONNECTOR

  • Emitter/Detector Type:

    PIN PHOTODIODE

  • Fiber Optic Device Type:

    TRANSCEIVER

  • Fiber Type:

    50/125, 62.5/125, MMF

  • JESD-609 Code:

    e3

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    70 °C

  • Operating Wavelength-Max:

    1380 nm

  • Operating Wavelength-Min:

    1270 nm

  • Operating Wavelength-Nom:

    1325 nm

  • Optical Power Output-Nom:

    0.02 mW

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

AFBR-5805Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal reflections. A 50-ohm microstrip transmission line should be used for the RF signal path.
  • The device requires a single 3.3V power supply. A 10uF capacitor should be placed between the VCC pin and ground to filter out noise. A 1kohm resistor should be used to bias the VBIAS pin to 1.5V.
  • The AFBR-5805Z is rated for operation from -40°C to 85°C. However, the device's performance may degrade at temperatures above 70°C. It is recommended to operate the device within the -20°C to 60°C range for optimal performance.
  • Use a spectrum analyzer to check the RF output signal for distortion or spurious emissions. Verify that the device is properly biased and that the PCB layout is correct. Check for any signs of overheating or physical damage to the device.
  • Yes, the AFBR-5805Z can be used in a push-pull configuration to improve output power and reduce distortion. However, this requires careful impedance matching and biasing to ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFBR-5805Z Overview

Use the download button to access the AFBR-5805Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFBR-, or try a keyword search, such as Fiber Optic Transceivers
