Broadcom recommends a 4-layer PCB with a dedicated ground plane, and thermal vias under the package to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including temperature, voltage, and current. Additionally, consider using thermal shielding, heat sinks, or cooling systems to maintain a stable temperature.
Broadcom recommends using a peak reflow temperature of 260°C (500°F) with a dwell time of 20-30 seconds. For hand soldering, use a temperature of 350°C (662°F) with a dwell time of 3-5 seconds. Always follow the recommended soldering and rework procedures to prevent damage to the device.
To troubleshoot issues, start by verifying the power supply and signal integrity. Check for proper PCB layout, thermal management, and soldering. Use oscilloscopes or logic analyzers to monitor signals and identify potential issues. Consult the datasheet and application notes for guidance on troubleshooting specific problems.
Yes, the AFBR-5922ALZ is a high-frequency device and requires proper EMI/EMC design considerations. Use shielding, filtering, and grounding techniques to minimize electromagnetic interference. Follow the recommended PCB layout and design guidelines to ensure compliance with EMI/EMC regulations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFBR-5922ALZ Overview

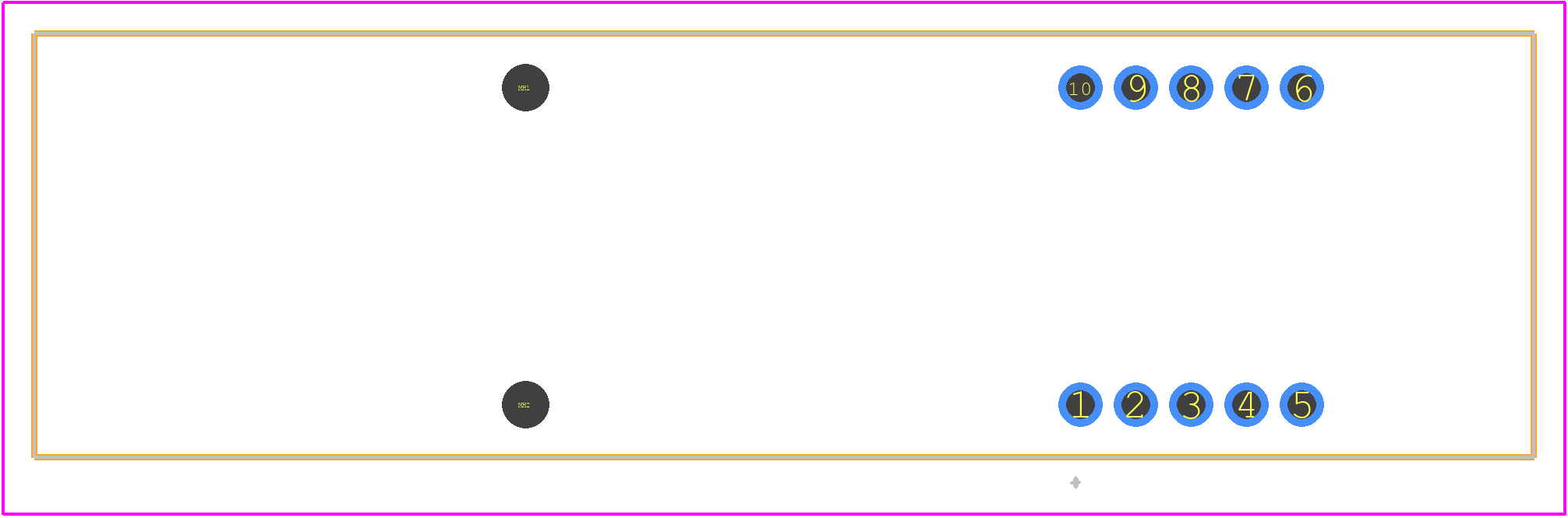

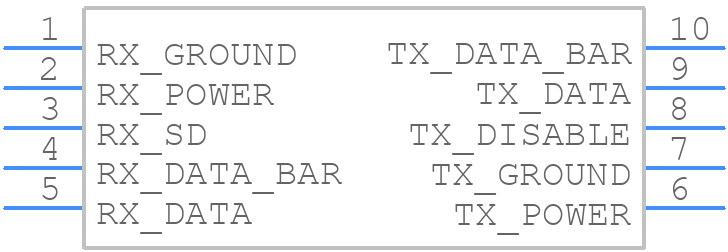

Use the download button to access the AFBR-5922ALZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFBR-,
or try a keyword search, such as Fiber Optic Transceivers
