IT ALSO HAVE UNSTRESSED RECEIVER SENSITIVITY, FOR DATA RATE 250 MBD OF -22 DBM
Body Breadth:
15.9 mm
Body Height:
12.6 mm
Body Length or Diameter:
21.45 mm
Built-in Feature:
AMPLIFIER
Emitter/Detector Type:
LED, PHOTODIODE
Fiber Optic Device Type:
TRANSCEIVER
Fiber Type:
POF
Mounting Feature:
PANEL MOUNT
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Operating Wavelength-Max:
675 nm
Operating Wavelength-Min:
635 nm
Operating Wavelength-Nom:
650 nm
Optical Power Output-Nom:
0.223 mW
Sensitivity:
-26 dBm
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.97 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
NO
AFBR-5972BZ Frequently Asked Questions (FAQs)
The recommended PCB layout involves keeping the component away from high-current carrying traces, using a solid ground plane, and ensuring good thermal conductivity. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 125°C.
To ensure reliable operation, follow the recommended operating conditions, use a stable power supply, and ensure good thermal management. Additionally, consider using a temperature sensor to monitor the device temperature and implement thermal shutdown or throttling if necessary.
The AFBR-5972BZ has built-in ESD protection, but handling precautions are still necessary. Handle the device by the body or pins, avoid touching the die, and use an anti-static wrist strap or mat. Store the device in an anti-static bag or container.
The AFBR-5972BZ is a commercial-grade device, but it can be used in high-reliability or safety-critical applications with proper design, testing, and validation. Ensure that your design meets the required safety and reliability standards, and consider using redundant or fail-safe mechanisms.
To troubleshoot issues, start by verifying the power supply, signal integrity, and PCB layout. Use oscilloscopes or logic analyzers to debug the signals, and check for thermal issues or overheating. Consult the datasheet and application notes for guidance, and consider seeking support from Broadcom Limited or a qualified engineer.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFBR-5972BZ Overview

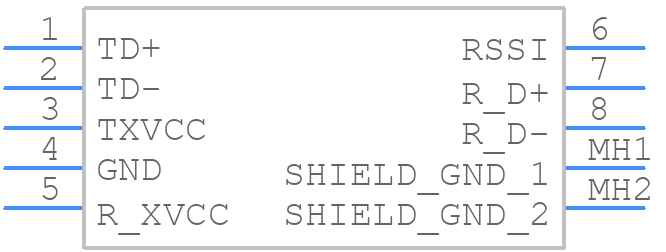

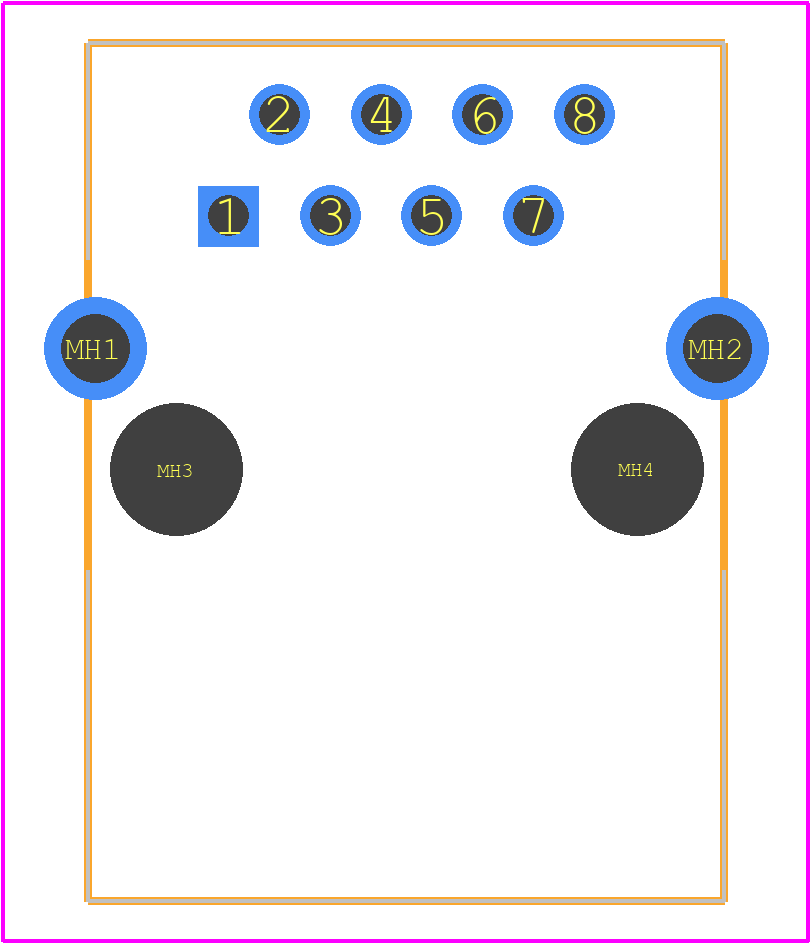

Use the download button to access the AFBR-5972BZ schematic symbol, PCB footprint, and 3D model.
