AFBR-59E4APZ - Avago Technologies

Description: BROADCOM - AFBR-59E4APZ - Fiber Optic Transceiver, Multimode SFF, LC Port, 1310 nm, 3.3 VDC

Download AFBR-59E4APZ Model

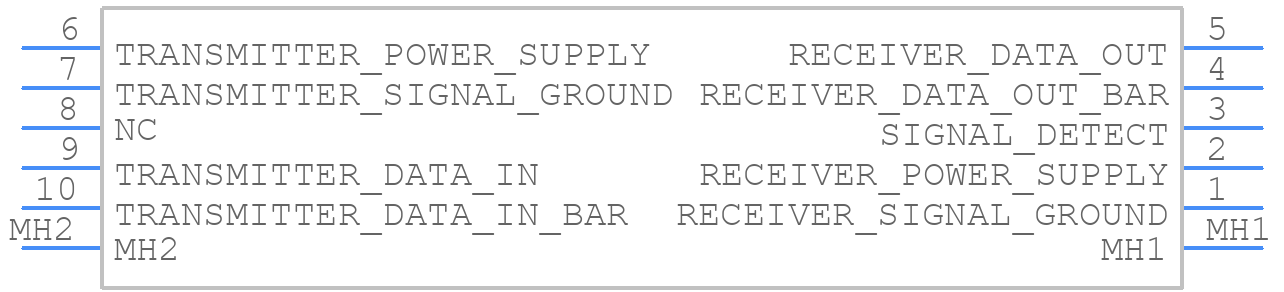

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

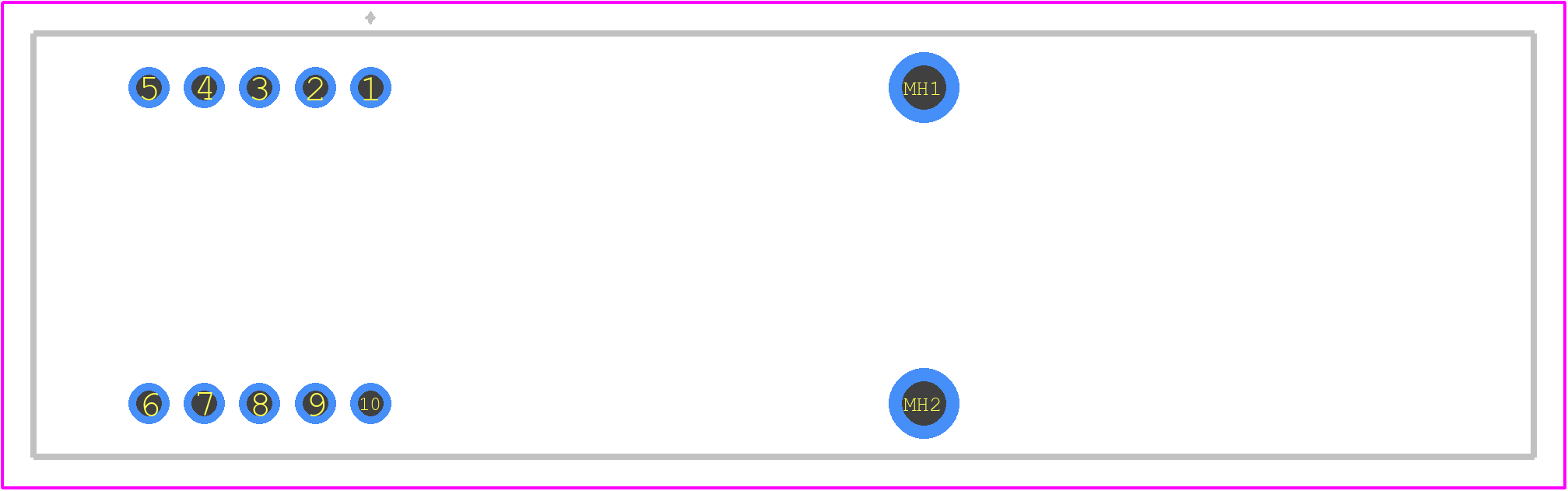

AFBR-59E4APZ - Avago Technologies PCB footprint - Other - Other - AFBR-59E4APZ-7
click to zoom
3D Models
AFBR-59E4APZ - Avago Technologies  - 3D model - Other - AFBR-59E4APZ-7
click to zoom

AFBR-59E4APZ Details

  • Manufacturer Part Number:

    AFBR-59E4APZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    5.9

  • Additional Feature:

    IT ALSO HAS REFERENCE STANDARD-JEDEC, JESD22-A114, OPTICAL POWER OUTPUT(TX) 0.022 MW AND FIBER TYPE 62.5/125

  • Body Breadth:

    13.59 mm

  • Body Height:

    9.8 mm

  • Body Length or Diameter:

    48.19 mm

  • Built-in Feature:

    AMPLIFIER

  • Connection Type:

    LC CONNECTOR

  • Emitter/Detector Type:

    LED, PIN PHOTODIODE

  • Fiber Optic Device Type:

    TRANSCEIVER

  • Fiber Type:

    50/125, 62.5/125, MMF

  • JESD-609 Code:

    e3

  • Mounting Feature:

    PANEL MOUNT, THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Operating Wavelength-Max:

    1380 nm

  • Operating Wavelength-Min:

    1270 nm

  • Operating Wavelength-Nom:

    1308 nm

  • Optical Power Output-Nom:

    0.02 mW

  • Package Style:

    DIP

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

AFBR-59E4APZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal reflections.
  • Ensure good thermal management by providing adequate heat sinking and airflow. The device can operate up to 85°C, but derating may be necessary for extended temperature ranges.
  • The recommended drive current is 10-20 mA. Exceeding this may reduce the device's reliability and lifespan.
  • No, the AFBR-59E4APZ is only available in a hermetic package to ensure reliability and stability in harsh environments.
  • Use a logic analyzer or oscilloscope to verify signal integrity and timing. Check the power supply and decoupling capacitors for noise and ripple.
