AFBR-59R5LZ - Avago Technologies

Description: Fiber Optic Transmitters, Receivers, Transceivers Transceiver

Download AFBR-59R5LZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

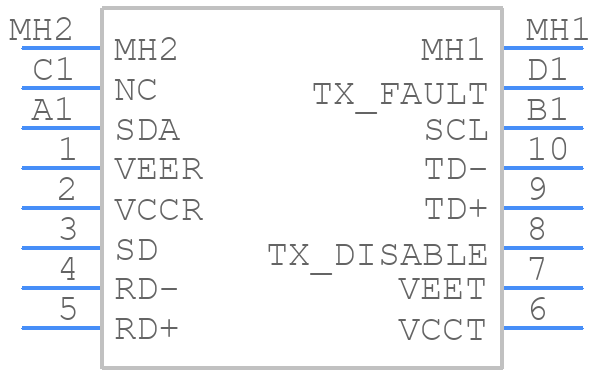

Symbol
AFBR-59R5LZ - Avago Technologies - PCB symbol
click to zoom

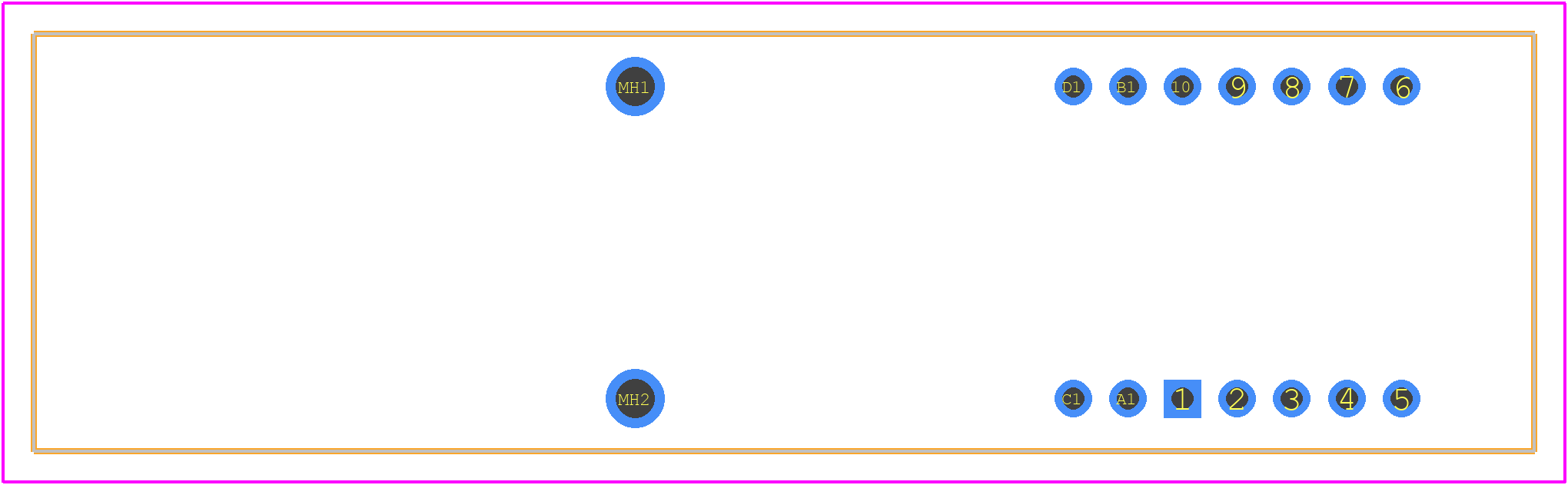

PCB Footprints
AFBR-59R5LZ - Avago Technologies PCB footprint - Other - Other - AFBR-59R5LZ
click to zoom

AFBR-59R5LZ Details

  • Manufacturer Part Number:

    AFBR-59R5LZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    0

  • Body Breadth:

    13.59 mm

  • Body Height:

    9.65 mm

  • Body Length or Diameter:

    48.1 mm

  • Built-in Feature:

    AMPLIFIER

  • Communication Standard:

    GBE

  • Connection Type:

    LC CONNECTOR

  • Data Rate (Rx):

    4250 Mbps

  • Data Rate (Tx):

    4250 Mbps

  • Emitter/Detector Type:

    LASER DIODE, PIN PHOTODIODE

  • Fiber Optic Device Type:

    TRANSCEIVER

  • Fiber Type:

    50/125, 62.5/125, MMF

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    70 °C

  • Operating Wavelength-Max:

    860 nm

  • Operating Wavelength-Min:

    830 nm

  • Operating Wavelength-Nom:

    845 nm

  • Optical Power Output-Nom:

    0.125 mW

  • Return Loss-Min:

    12 dB

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

AFBR-59R5LZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal reflections.
  • Ensure good thermal conductivity by using a heat sink or thermal pad, and follow the recommended operating temperature range of -40°C to 85°C. Also, consider using a thermal interface material to improve heat transfer.
  • The recommended drive current is 10-20 mA. Exceeding this current may reduce the device's reliability and lifespan.
  • Use an oscilloscope to check the signal integrity and eye diagram. Verify that the device is properly terminated and that the signal is within the recommended voltage range. Check for any signs of overheating or physical damage.
  • While the AFBR-59R5LZ is designed for 50Ω systems, it can be used in non-50Ω systems with proper impedance matching. However, this may require additional circuitry and may affect the device's performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFBR-59R5LZ Overview

Use the download button to access the AFBR-59R5LZ schematic symbol and PCB footprint.
