AFIC10275N footprint, schematic symbol and 3D model by NXP

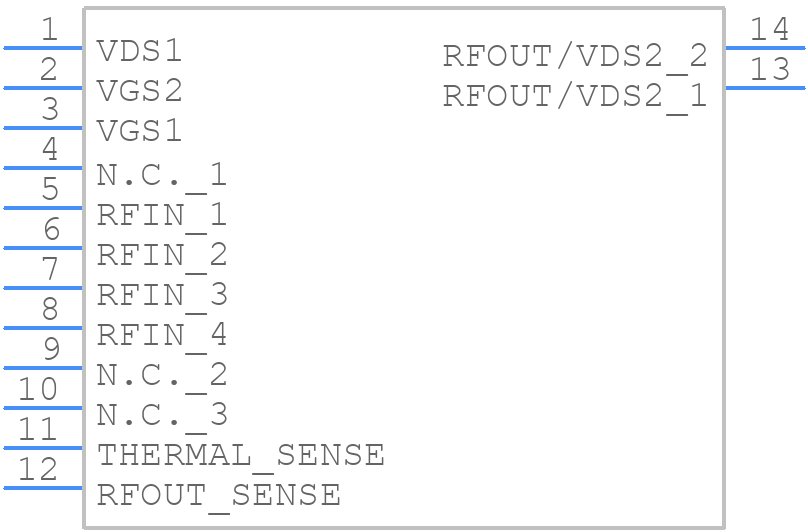

Symbol

click to zoom

PCB Footprints

AFIC10275N - NXP PCB footprint - Other - Other - SOT1720-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AFIC10275N
Part Number AFIC10275N
Manufacturer NXP
Pin Count 14
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOT1720-2
Released Date Feb 2, 2025
Last Modified Date Aug 14, 2025 7:25 PM UTC
Pinout / Pin List Click Here (Member Only)

AFIC10275N Details

Manufacturer Part Number:
AFIC10275N
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Country Of Origin:
Malaysia
Manufacturer:
NXP Semiconductors
YTEOL:
0
JESD-609 Code:
e3
RF/Microwave Device Type:
NARROW BAND HIGH POWER
Terminal Finish:
Tin (Sn)

Trust Checks

Community Provided

System Verified

Community Approved

AFIC10275N Overview

Use the download button to access the AFIC10275N schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AFIC1, or try a keyword search, such as RF/Microwave Amplifiers
