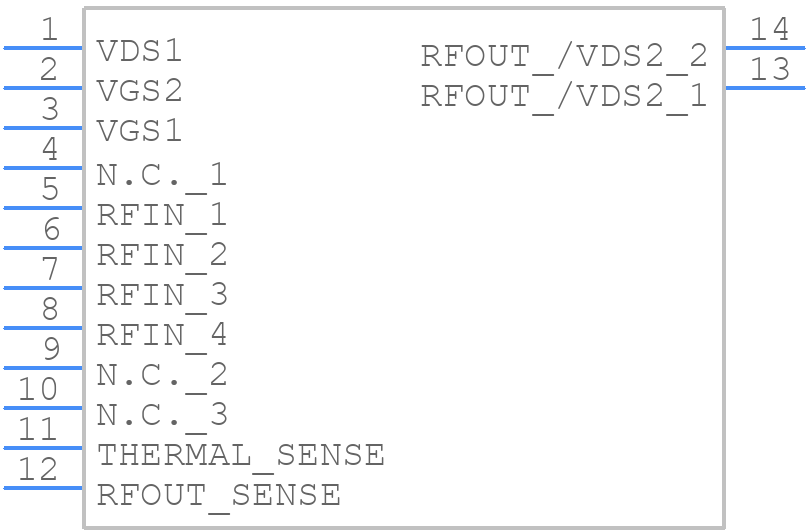

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AFIC10275NR5
- Part Number AFIC10275NR5
- Manufacturer NXP
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - AFIC10275NR5-4
- Released Date Jan 31, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AFIC10275NR5 Details
-
Manufacturer Part Number:
AFIC10275NR5
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Factory Lead Time:
26 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
-
JESD-609 Code:
e3
-
RF/Microwave Device Type:
NARROW BAND HIGH POWER
AFIC10275NR5 Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout in the application note AN11542, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
-
The AFIC10275NR5 has an internal overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The recommended values for the resistor and capacitor can be found in the application note AN11542.
-
The maximum allowed voltage on the VCC pin during startup is 6.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
-
NXP provides guidelines for EMC in the application note AN11542, which includes recommendations for PCB layout, component selection, and shielding to ensure electromagnetic compatibility.
-
The recommended operating temperature range for the AFIC10275NR5 is -40°C to 125°C, as specified in the datasheet. Operating outside this range may affect the device's performance and reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
AFIC10275NR5 Overview
Use the download button to access the AFIC10275NR5 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AFIC1,
or try a keyword search, such as RF/Microwave Amplifiers
