AFM907NT1 - NXP

Description: NXP - AFM907NT1 - TRANSISTOR, RF, N-CH, 30VDC, DFN-16

Download AFM907NT1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

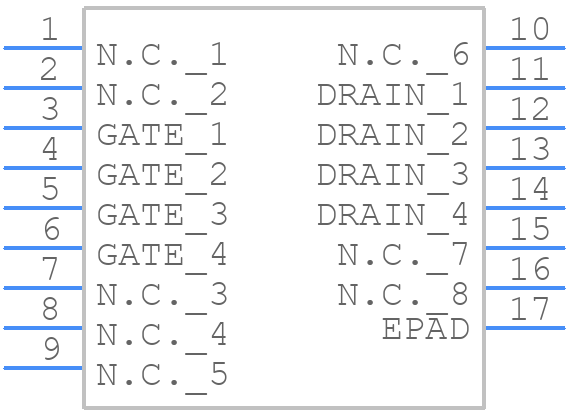

Symbol
AFM907NT1 - NXP - PCB symbol
click to zoom
PCB Footprints
AFM907NT1 - NXP PCB footprint - Other - Other - SOT1862-1
click to zoom
3D Models
AFM907NT1 - NXP - 3D model - Other - SOT1862-1
click to zoom

AFM907NT1 Details

  • Manufacturer Part Number:

    AFM907NT1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOT-1862-1, DFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Case Connection:

    SOURCE

  • Configuration:

    SINGLE

  • DS Breakdown Voltage-Min:

    30 V

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    2.4 pF

  • Highest Frequency Band:

    ULTRA HIGH FREQUENCY BAND

  • JESD-30 Code:

    R-PDSO-N16

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    1

  • Number of Terminals:

    16

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

AFM907NT1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching to minimize signal reflections.
  • The AFM907NT1 requires a 3.3V power supply with a minimum of 100mA current capability. Ensure the voltage regulator is stable and has low noise to prevent self-oscillation.
  • The AFM907NT1 is rated for operation from -40°C to 125°C. However, the device's performance may degrade above 85°C, and it's recommended to use a heat sink or thermal management system for high-temperature applications.
  • Use a spectrum analyzer to measure the device's output spectrum and check for spurious emissions. Verify the PCB layout and component values, and ensure proper impedance matching and biasing.
  • Yes, the AFM907NT1 can be used in a push-pull configuration to improve output power and efficiency. However, this requires careful design and layout to ensure proper impedance matching and biasing.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFM907NT1 Overview

Use the download button to access the AFM907NT1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFM90, or try a keyword search, such as RF Power Field-Effect Transistors
