Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
Yes, AFS14A35-1591.50-T3 is designed to withstand vibrations up to 20G peak acceleration, making it suitable for use in high-vibration environments. However, it's essential to ensure proper PCB mounting and soldering to maintain reliability.
Abracon recommends following standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging. The AFS14A35-1591.50-T3 has a human body model (HBM) ESD rating of 2kV, but it's still important to take precautions to prevent damage.
The AFS14A35-1591.50-T3 has an operating temperature range of -40°C to +85°C, making it suitable for use in a wide range of applications. However, it's essential to consider the temperature coefficient of the device when designing the system.
Yes, AFS14A35-1591.50-T3 is designed to operate in humid environments, with a moisture sensitivity level (MSL) rating of 3. However, it's still important to follow proper storage and handling procedures to prevent moisture-related damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFS14A35-1591.50-T3 Overview

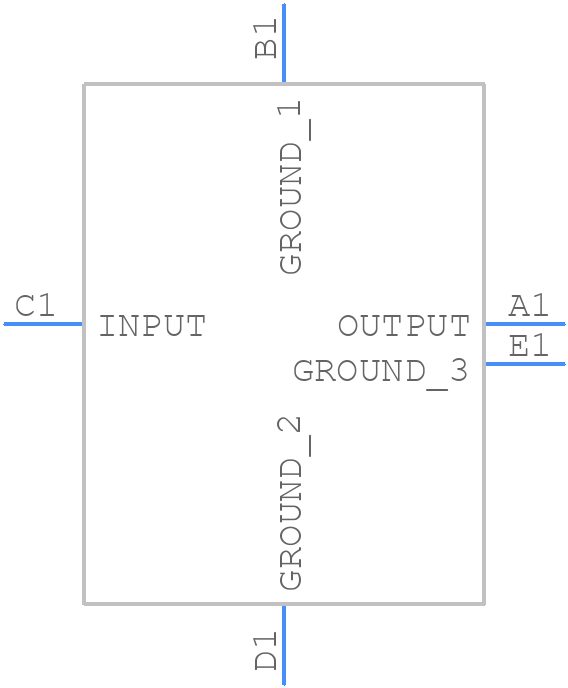

Use the download button to access the AFS14A35-1591.50-T3 schematic symbol, PCB footprint, and 3D model.
