AFS14A72-2436.00-T3 footprint, schematic symbol and 3D model by ABRACON

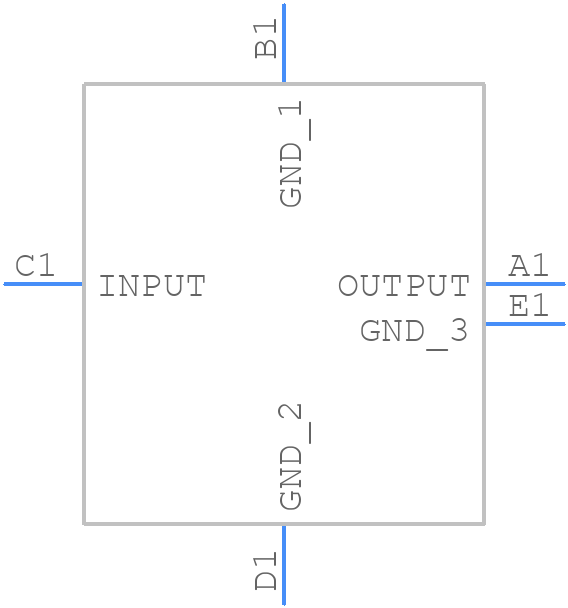

Symbol

PCB Footprints

3D Models

AFS14A72-2436.00-T3 Details

The recommended land pattern for the AFS14A72-2436.00-T3 can be found in the Abracon Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress on the component.
The AFS14A72-2436.00-T3 is a moisture-sensitive device. It's essential to handle it in a dry environment, and if it's exposed to moisture, it should be baked according to the manufacturer's recommendations to prevent damage during soldering.
The thermal resistance of the AFS14A72-2436.00-T3 can be calculated using the thermal resistance values provided in the datasheet. Typically, it's around 10-15°C/W for the junction-to-ambient thermal resistance. However, this value may vary depending on the specific application and PCB design.
The AFS14A72-2436.00-T3 is designed to withstand moderate vibration levels. However, if the application involves extreme vibration, it's recommended to consult with Abracon Corporation's technical support to ensure the component's reliability and performance.
The AFS14A72-2436.00-T3 should be stored in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -20°C to 40°C, and the relative humidity should be below 60%.

Expert Contribution

System Verified

Community Approved

Use the download button to access the AFS14A72-2436.00-T3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AFS14, or try a keyword search, such as SAW Filters
