AFSC5G26E39T2 - NXP

Description: RF Amplifier Airfast Power Amplifier Module, 2496-2690 MHz, 30 dB, 8 W Avg.

Download AFSC5G26E39T2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

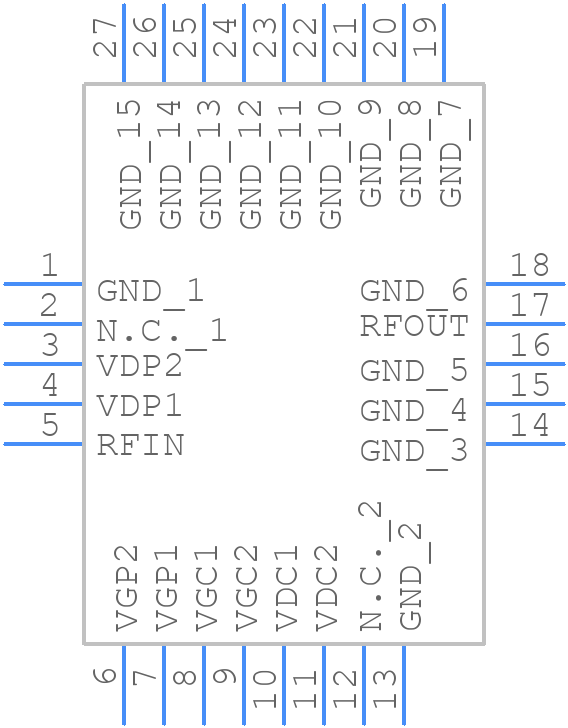

AFSC5G26E39T2 - NXP - PCB symbol
click to zoom
PCB Footprints
AFSC5G26E39T2 - NXP PCB footprint - Other - Other - 10mm x 6mm x 1.435mm
click to zoom
3D Models
AFSC5G26E39T2 - NXP - 3D model - Other - 10mm x 6mm x 1.435mm
click to zoom

AFSC5G26E39T2 Details

  • Manufacturer Part Number:

    AFSC5G26E39T2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    22 Weeks

  • Date Of Intro:

    2020-09-30

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-609 Code:

    e4

  • RF/Microwave Device Type:

    POWER AMPLIFIER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

AFSC5G26E39T2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching to minimize signal reflections.
  • Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Avoid operating the device in extreme temperatures (above 85°C or below -40°C) to prevent damage or malfunction.
  • Use a 10uF capacitor in parallel with a 100nF capacitor, both connected as close as possible to the device's power pins. This helps to filter out noise and ensure stable operation.
  • Use the device's built-in power-saving features, such as dynamic voltage and frequency scaling. Also, optimize the system's firmware to minimize unnecessary computations and reduce power consumption during idle periods.
  • Use a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection IC to protect the device from electrostatic discharge. Ensure the protection device is rated for the maximum voltage and current of the AFSC5G26E39T2.
