XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the AG01P-5 is designed to withstand vibrations up to 10G peak acceleration, 10-2000 Hz frequency range, and 1 hour duration per axis. However, it's recommended to consult XP Power's application notes for specific vibration testing and mounting recommendations.
The input fuse should be sized based on the module's maximum input current rating, which is 5A for the AG01P-5. A slow-blow fuse with a rating of 5A or higher is recommended to ensure the module's input stage is protected from overcurrent conditions.
XP Power recommends using a low-ESR, high-frequency ceramic capacitor with a value of 10uF to 22uF, rated for at least 25V, placed as close as possible to the module's input pins. This helps to filter input noise and ensure stable operation.
Yes, the AG01P-5 can be used in redundant or parallel configurations to achieve higher power output or redundancy. However, it's essential to consult XP Power's application notes and follow their guidelines for proper configuration and synchronization to ensure reliable operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AG01P-5 Overview

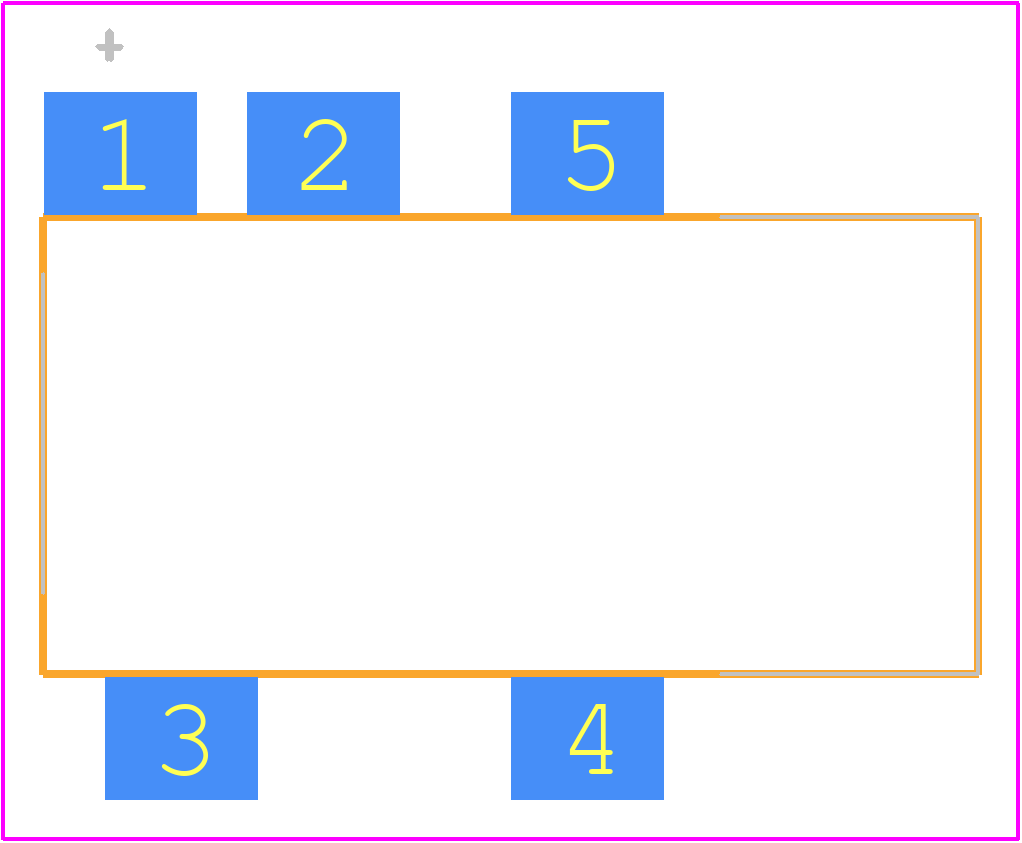

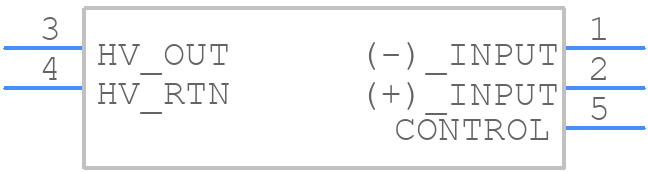

Use the download button to access the AG01P-5 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AG01P,
or try a keyword search, such as Power Supply Modules
