AG1058 - Panasonic

Description: Flat type (double contact) Safety relay compliant with Safety standards

Download AG1058 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AG1058 model

Email notifications will be applied after download.

Send part feedback

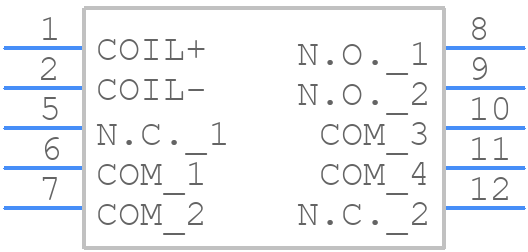

Symbol

AG1058 - Panasonic - PCB symbol

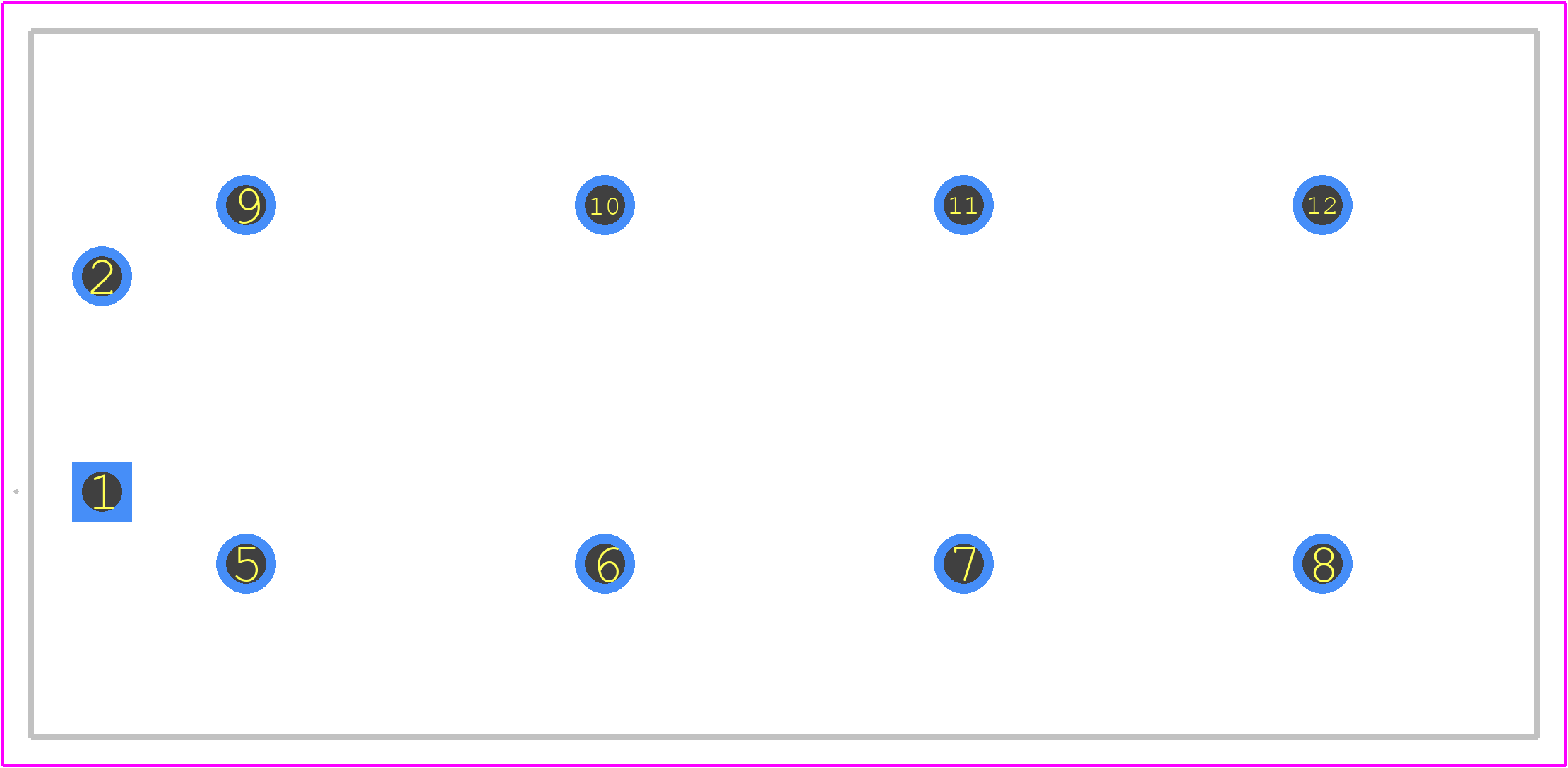

PCB Footprints

AG1058 - Panasonic PCB footprint - Other - Other - SF_2FA2FB

3D Models

AG1058 - Panasonic - 3D model - Other - SF_2FA2FB

Datasheet Download Datasheet
Stock & Prices Price & Stock for AG1058
Part Number AG1058
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SF_2FA2FB
Released Date Oct 16, 2025
Last Modified Date Feb 24, 2026 1:50 PM UTC
Pinout / Pin List Click Here (Member Only)

AG1058 Details

Manufacturer Part Number:
AG1058
Manufacturer:
Panasonic Electronic Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AG1058 Overview

Use the download button to access the AG1058 schematic symbol, PCB footprint, and 3D model.
