AG1059 - Panasonic

Description: Flat type (double contact) Safety relay compliant with Safety standards

Download AG1059 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AG1059 model

Email notifications will be applied after download.

Send part feedback

Symbol

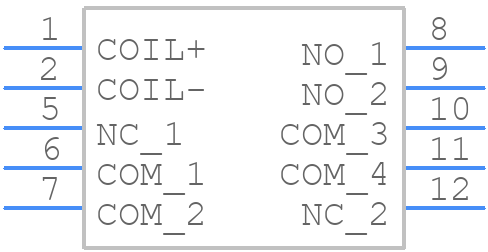

AG1059 - Panasonic - PCB symbol

PCB Footprints

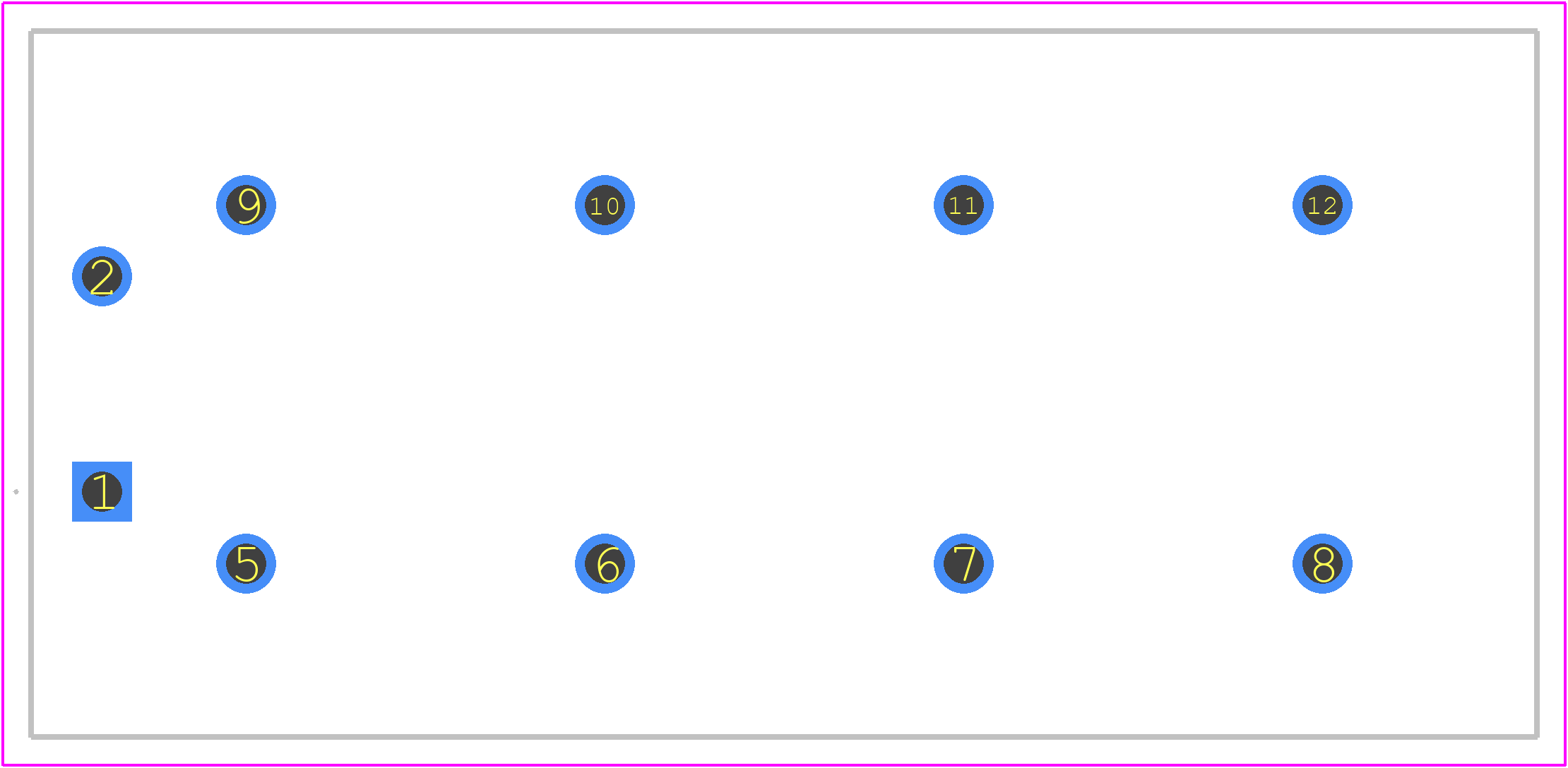

AG1059 - Panasonic PCB footprint - Other - Other - SF2D-DC5V-1

3D Models

AG1059 - Panasonic - 3D model - Other - SF2D-DC5V-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for AG1059
Part Number AG1059
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SF2D-DC5V-1
Released Date Oct 16, 2025
Last Modified Date Jan 21, 2026 3:14 PM UTC
Pinout / Pin List Click Here (Member Only)

AG1059 Details

Manufacturer Part Number:
AG1059
Manufacturer:
Panasonic Electronic Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AG1059 Overview

Use the download button to access the AG1059 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AG105, or try a keyword search, such as Fixed Resistors
