AG1S022 - Panasonic

Description: Slim type Safety relay, Standard (Without LED indication), 2 Form A 2 Form B, 24 V

Download AG1S022 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AG1S022 model

Email notifications will be applied after download.

Send part feedback

Symbol

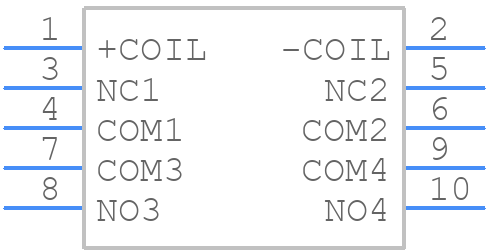

AG1S022 - Panasonic - PCB symbol

PCB Footprints

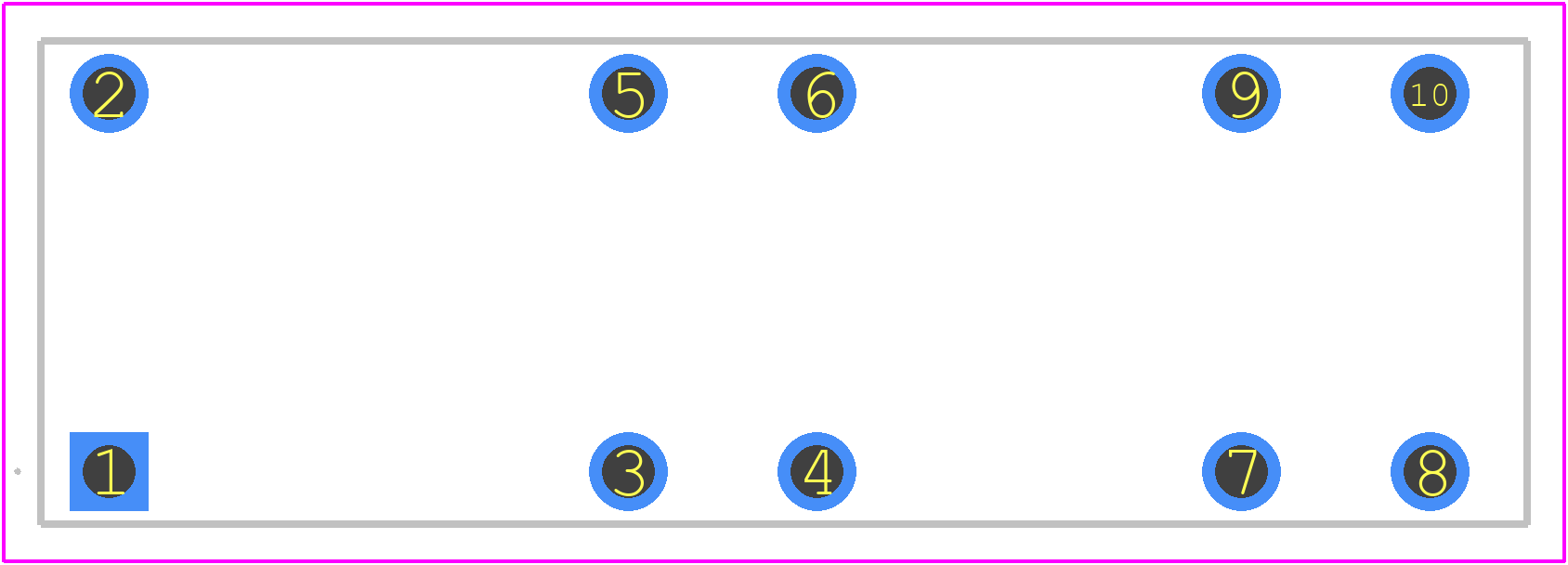

AG1S022 - Panasonic PCB footprint - Other - Other - AG1S022-1

3D Models

AG1S022 - Panasonic - 3D model - Other - AG1S022-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for AG1S022
Part Number AG1S022
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - AG1S022-1
Released Date Nov 12, 2025
Last Modified Date Dec 9, 2025 9:57 AM UTC
Pinout / Pin List Click Here (Member Only)

AG1S022 Details

Manufacturer Part Number:
AG1S022
Manufacturer:
Panasonic Electronic Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AG1S022 Overview

Use the download button to access the AG1S022 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AG1S0, or try a keyword search, such as Circuit Breaker
